Fanfu Wu, Xiaoyi Lei, Yunting Liu
Memristors can achieve up to a 1000× reduction in energy consumption in neuromorphic and in-memory computing, but their integration into power converter control remains incomplete. Existing implementations either convert memristor outputs into digital signals for DSP-based pulse-width modulation (PWM), reintroducing computational overhead, or use analog PWM circuits with limited programmability. Since PWM generation is the final essential stage of power converter control, a programmable memristor-based PWM circuit is needed to fully realize the energy-efficiency benefits of memristive computing. This paper presents a programmable memristor-based PWM circuit operating at approximately two-hundred kilohertz for switching power converters. The design combines digital-controller programmability with the low power consumption of analog PWM generators. Experimental validation using commercially available memristors achieves a programmable switching frequency from 144.7 kHz to 204.2 kHz. Compared with a commonly used DSP implementation in the power converter control, the proposed design achieves a 92% reduction in power consumption.
@article{9844e868-1742-4a2d-8e85-54573ee456a4,

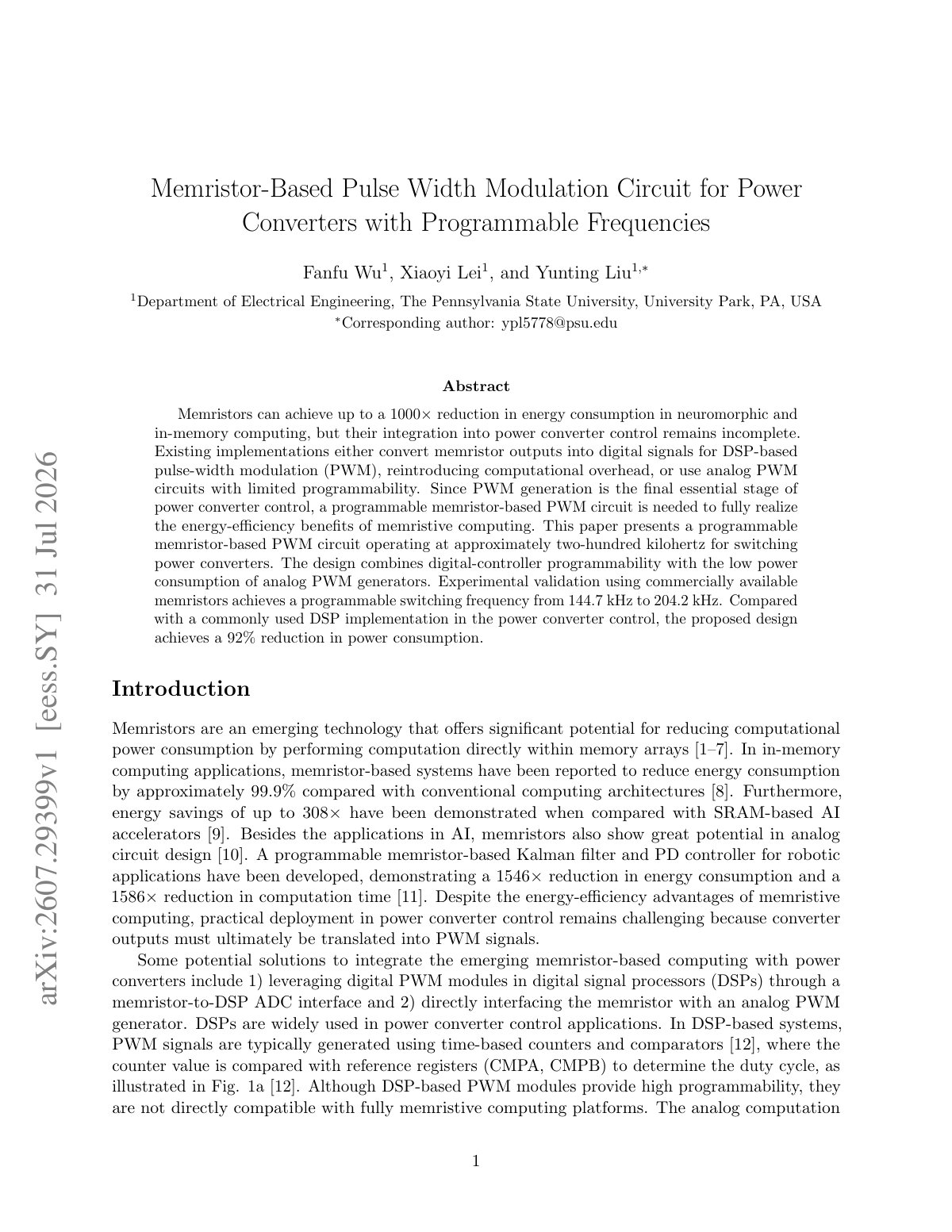

title={2026 Wu Memristor PWM Power Converters (1)},
author={Fanfu Wu and Xiaoyi Lei and Yunting Liu},
year={2026},
language={en}
}TY - JOUR TI - 2026 Wu Memristor PWM Power Converters (1) AU - Fanfu Wu AU - Xiaoyi Lei AU - Yunting Liu PY - 2026 LA - en ER -
