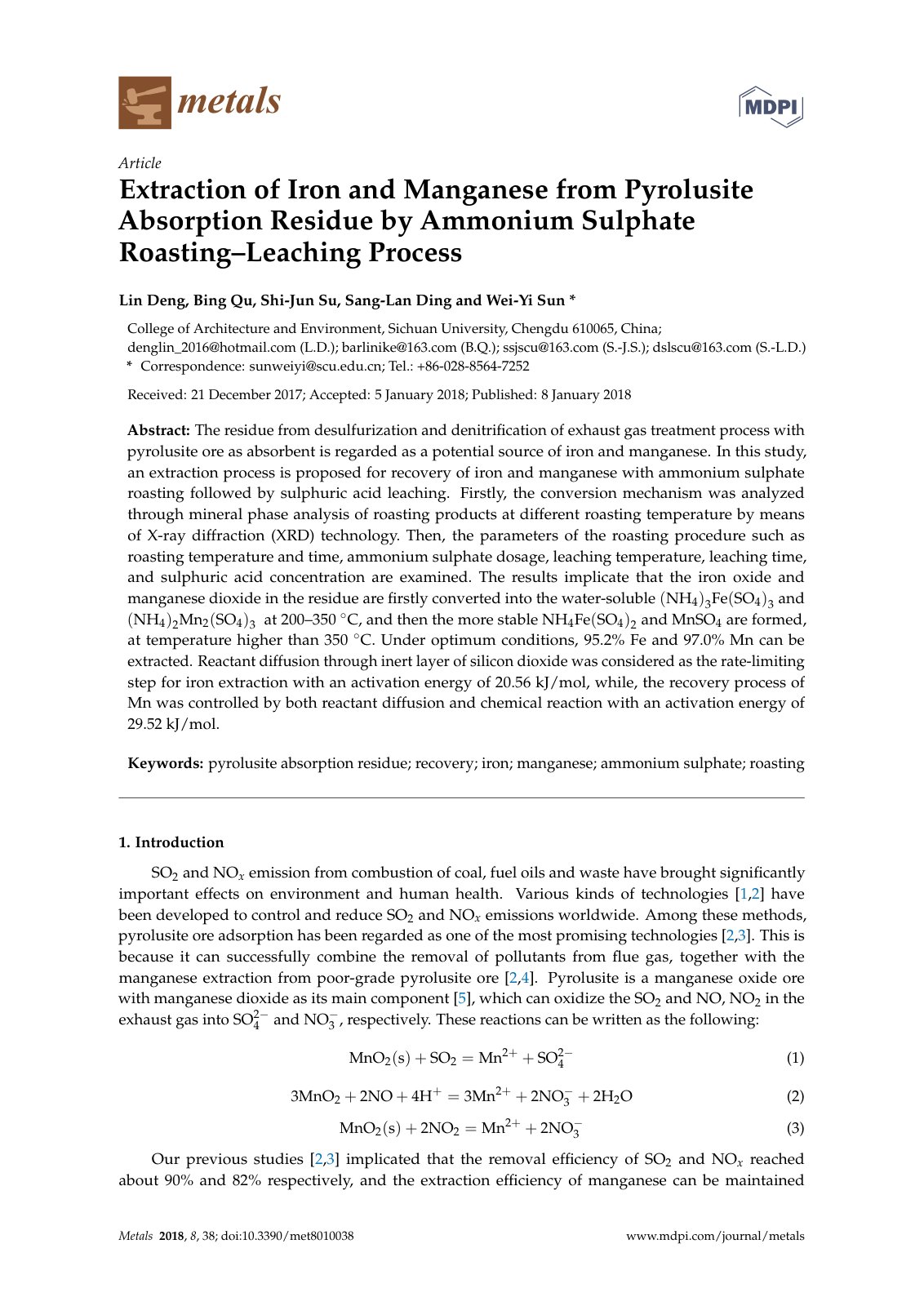

2018 Deng Iron and manganese from pyrolusite residue

The residue from desulfurization and denitrification of exhaust gas treatment process with pyrolusite ore as absorbent is regarded as a potential source of iron and manganese. In this study, an extraction process is proposed for recovery of iron and manganese with ammonium sulphate roasting followed by sulphuric acid leaching. Firstly, the conversion mechanism was analyzed through mineral phase analysis of roasting products at different roasting temperature by means of X-ray diffraction (XRD) technology. Then, the parameters of the roasting procedure such as roasting temperature and time, ammonium sulphate dosage, leaching temperature, leaching time, and sulphuric acid concentration are examined. The results implicate that the iron oxide and manganese dioxide in the residue are firstly converted into the water-soluble (NH4)3Fe(SO4)3 and (NH4)2Mn2(SO4)3 at 200–350 ◦C, and then the more stable NH4Fe(SO4)2 and MnSO4 are formed, at temperature higher than 350 ◦C. Under optimum conditions, 95.2% Fe and 97.0% Mn can be extracted. Reactant diffusion through inert layer of silicon dioxide was considered as the rate-limiting step for iron extraction with an activation energy of 20.56 kJ/mol, while, the recovery process of Mn was controlled by both reactant diffusion and chemical reaction with an activation energy of 29.52 kJ/mol.
