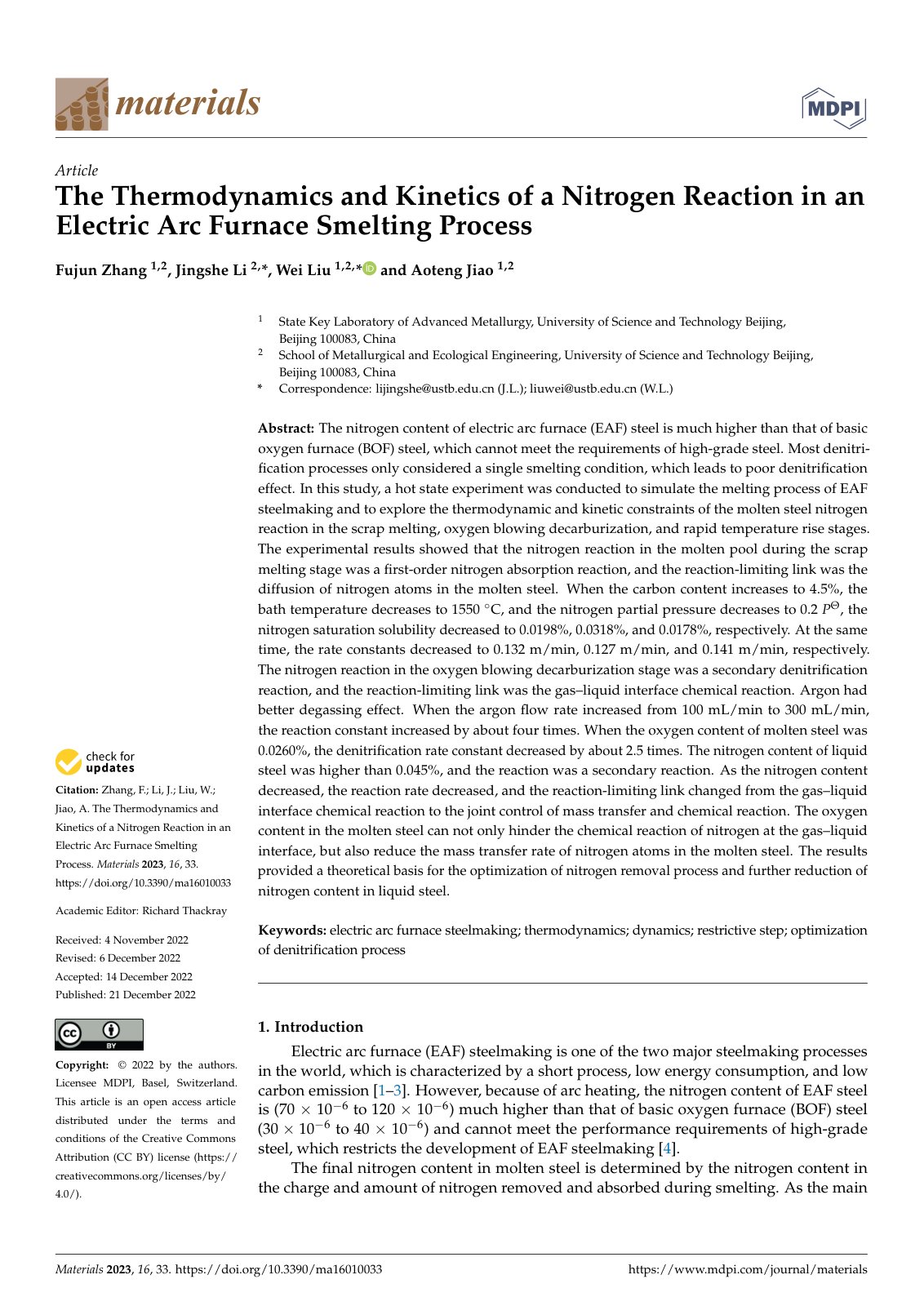

The Thermodynamics and Kinetics of a Nitrogen Reaction in an Electric Arc Furnace Smelting Process

The nitrogen content of electric arc furnace (EAF) steel is much higher than that of basic oxygen furnace (BOF) steel, which cannot meet the requirements of high-grade steel. Most denitrification processes only considered a single smelting condition, which leads to poor denitrification effect. In this study, a hot state experiment was conducted to simulate the melting process of EAF steelmaking and to explore the thermodynamic and kinetic constraints of the molten steel nitrogen reaction in the scrap melting, oxygen blowing decarburization, and rapid temperature rise stages. The experimental results showed that the nitrogen reaction in the molten pool during the scrap melting stage was a first-order nitrogen absorption reaction, and the reaction-limiting link was the diffusion of nitrogen atoms in the molten steel. When the carbon content increases to 4.5%, the bath temperature decreases to 1550 ◦C, and the nitrogen partial pressure decreases to 0.2 PΘ, the nitrogen saturation solubility decreased to 0.0198%, 0.0318%, and 0.0178%, respectively. At the same time, the rate constants decreased to 0.132 m/min, 0.127 m/min, and 0.141 m/min, respectively. The nitrogen reaction in the oxygen blowing decarburization stage was a secondary denitrification reaction, and the reaction-limiting link was the gas–liquid interface chemical reaction. Argon had better degassing effect.
