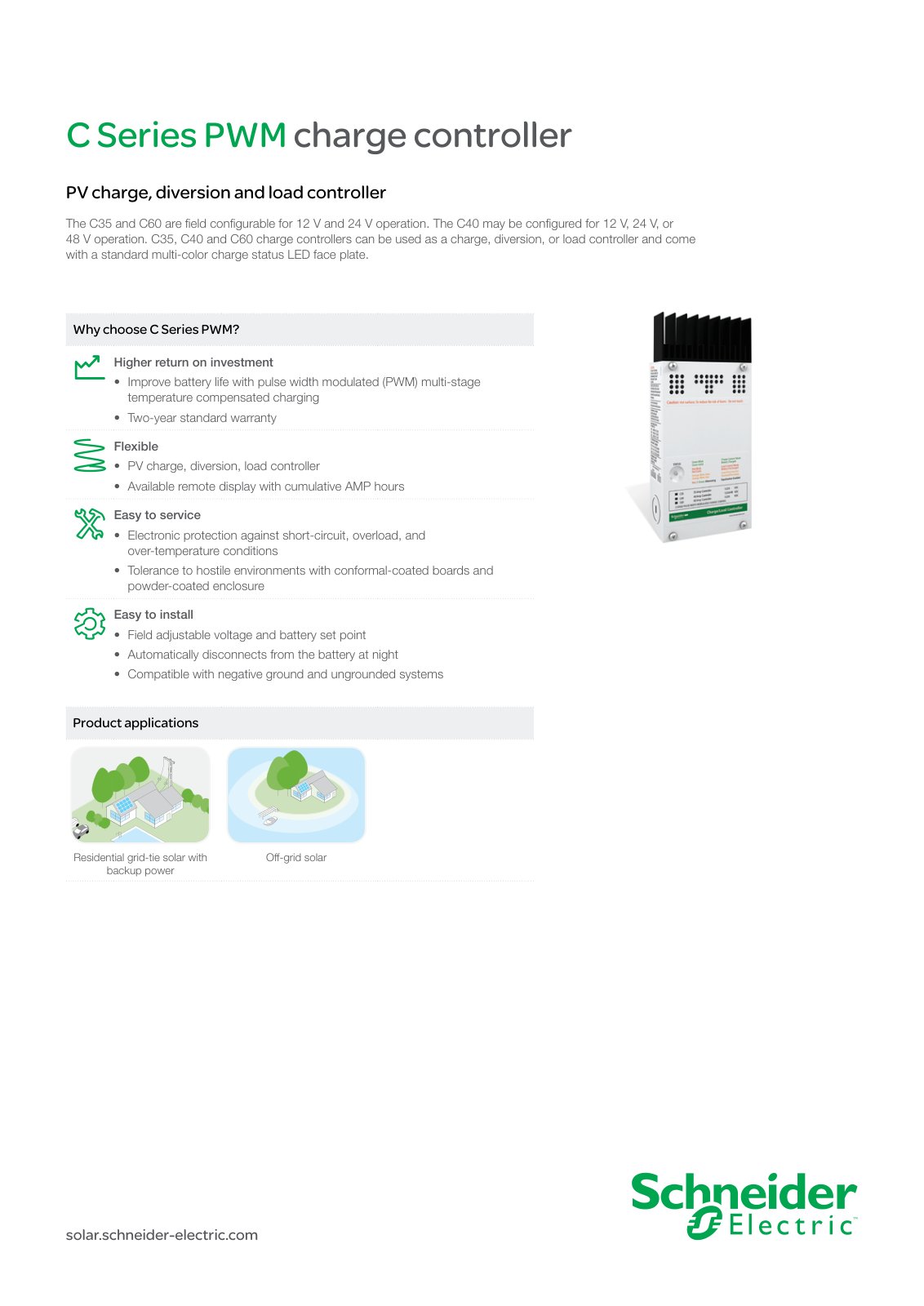

C Series PWM charge controller

Schneider Electric

2015ensolarchargecontrollerPWMenergy

Abstract

Language:

This document provides a comprehensive overview of the C Series PWM charge controllers, specifically the C35, C40, and C60 models, outlining their operational configurations for 12V, 24V, and 48V systems. The objective is to demonstrate the advantages of using these controllers in various solar power applications, including residential grid-tie solar systems and off-grid solar setups. The methodology includes detailing the devices' specifications, such as rated PV current, voltage configurations, maximum voltage ratings, and safety features such as electronic protection against short circuits and overloads. Results indicate that the C Series controllers offer improved battery life through pulse width modulation, user-friendly installation with field-adjustable settings, and a two-year standard warranty. The incorporation of features such as a remote display and adjustable battery settings further enhances flexibility. Overall, the C Series PWM charge controllers are designed to ensure efficient energy management and reliable performance in diverse environments.

Download

Cite This Work

@article{a3d80121-bbb8-49d8-b157-168e3eefe67e,
  title={C Series PWM charge controller},
  author={Schneider Electric},
  year={2015},
  language={en}
}
TY  - JOUR
TI  - C Series PWM charge controller
AU  - Schneider Electric
PY  - 2015
LA  - en
ER  -
