SAUD SALEEM, MICHAEL VYNNYCKY

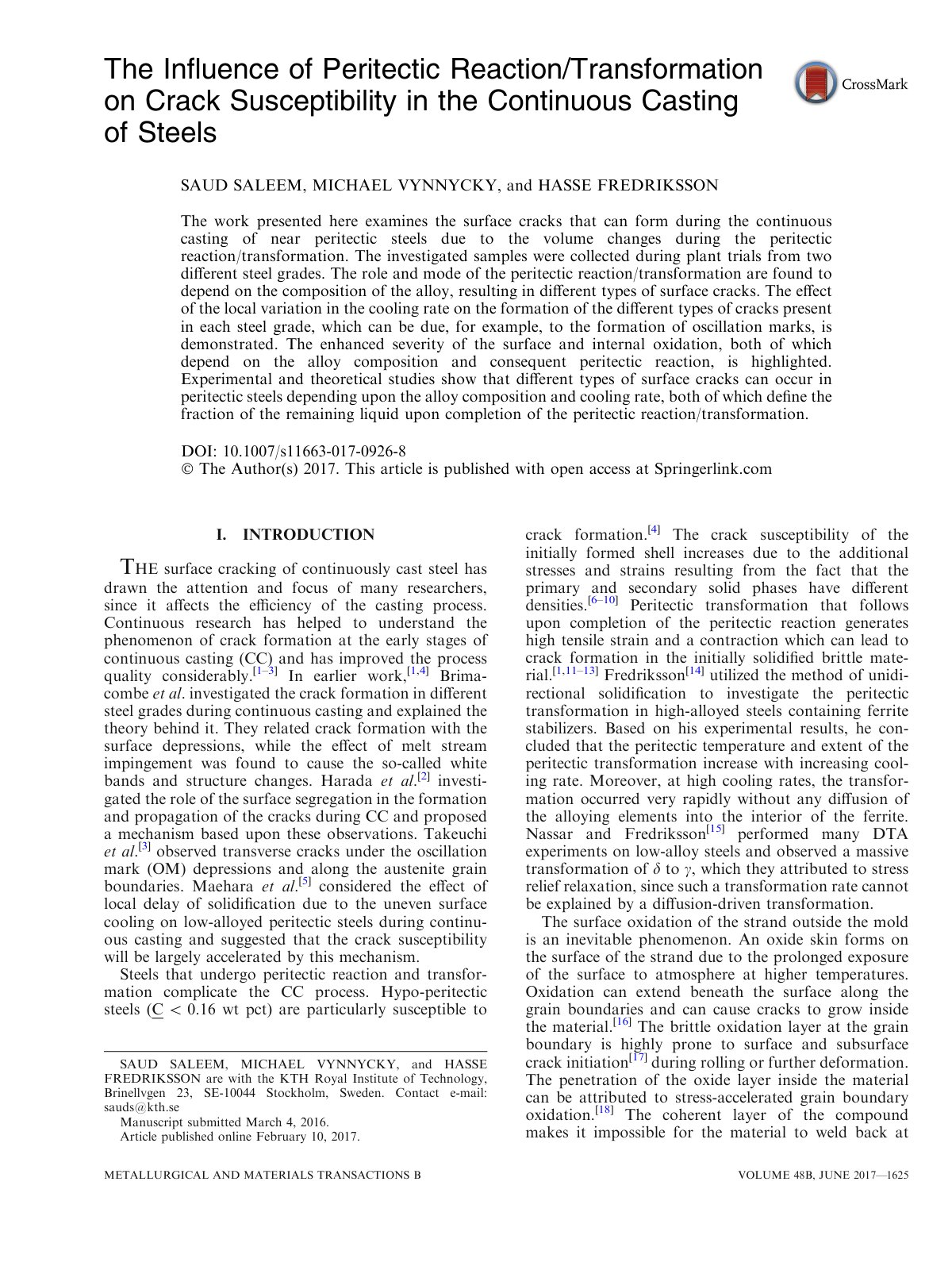

The work presented here examines the surface cracks that can form during the continuous casting of near peritectic steels due to volume changes during the peritectic reaction/transformation. Investigated samples were collected during plant trials from two different steel grades, revealing that the role and mode of the peritectic reaction/transformation depend on the alloy composition, resulting in various types of surface cracks. The effects of local variation in the cooling rate on the formation of different types of cracks, possibly due to oscillation marks, are demonstrated. The study highlights the enhanced severity of surface and internal oxidation, influenced by alloy composition and the subsequent peritectic reaction. Through experimental and theoretical studies, it is shown that different types of surface cracks can occur in peritectic steels based on alloy composition and cooling rate, which dictate the remaining liquid fraction upon completion of the peritectic reaction/transformation.
@article{a4d9088c-b5ff-48a1-af4c-6530600b12d2,
title={The Influence of Peritectic Reaction Tra (1)},
author={SAUD SALEEM and MICHAEL VYNNYCKY},
year={2026},
language={en}
}TY - JOUR TI - The Influence of Peritectic Reaction Tra (1) AU - SAUD SALEEM AU - MICHAEL VYNNYCKY PY - 2026 LA - en ER -
This paper addresses the challenge of assessing the feasibility of wind power plant projects at sites with insufficient or no local historic wind data
Important advances in electrochemical engineering technology over the last three decades have fostered the development of a lternative methods to alle
Increasing volumes of waste printed circuit boards from obsolete electronic equipment posed escalating environmental risks and resource losses due to
The leachability tests for manufacturing scrap TV boards (STVB) have indicated the release of metals beyond the limit levels with potential problems f
