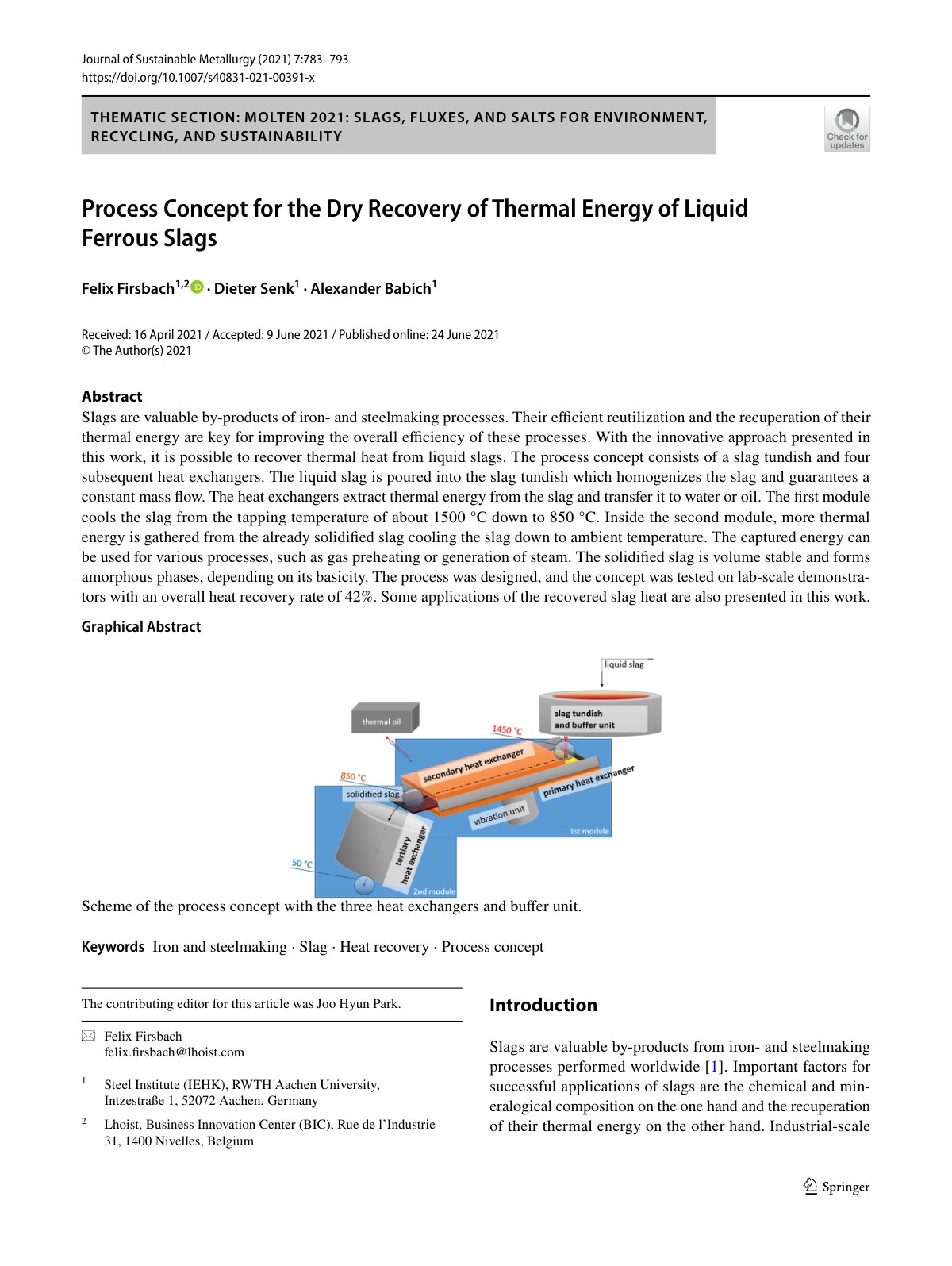

Process Concept for the Dry Recovery of Thermal Energy of Liquid Ferrous Slags

Slags are valuable by-products of iron- and steelmaking processes. Their efficient reutilization and the recuperation of their thermal energy are key for improving the overall efficiency of these processes. With the innovative approach presented in this work, it is possible to recover thermal heat from liquid slags. The process concept consists of a slag tundish and four subsequent heat exchangers. The liquid slag is poured into the slag tundish which homogenizes the slag and guarantees a constant mass flow. The heat exchangers extract thermal energy from the slag and transfer it to water or oil. The first module cools the slag from the tapping temperature of about 1500 °C down to 850 °C. Inside the second module, more thermal energy is gathered from the already solidified slag cooling the slag down to ambient temperature. The captured energy can be used for various processes, such as gas preheating or generation of steam. The solidified slag is volume stable and forms amorphous phases, depending on its basicity. The process was designed, and the concept was tested on lab-scale demonstrators with an overall heat recovery rate of 42%. Some applications of the recovered slag heat are also presented in this work.
