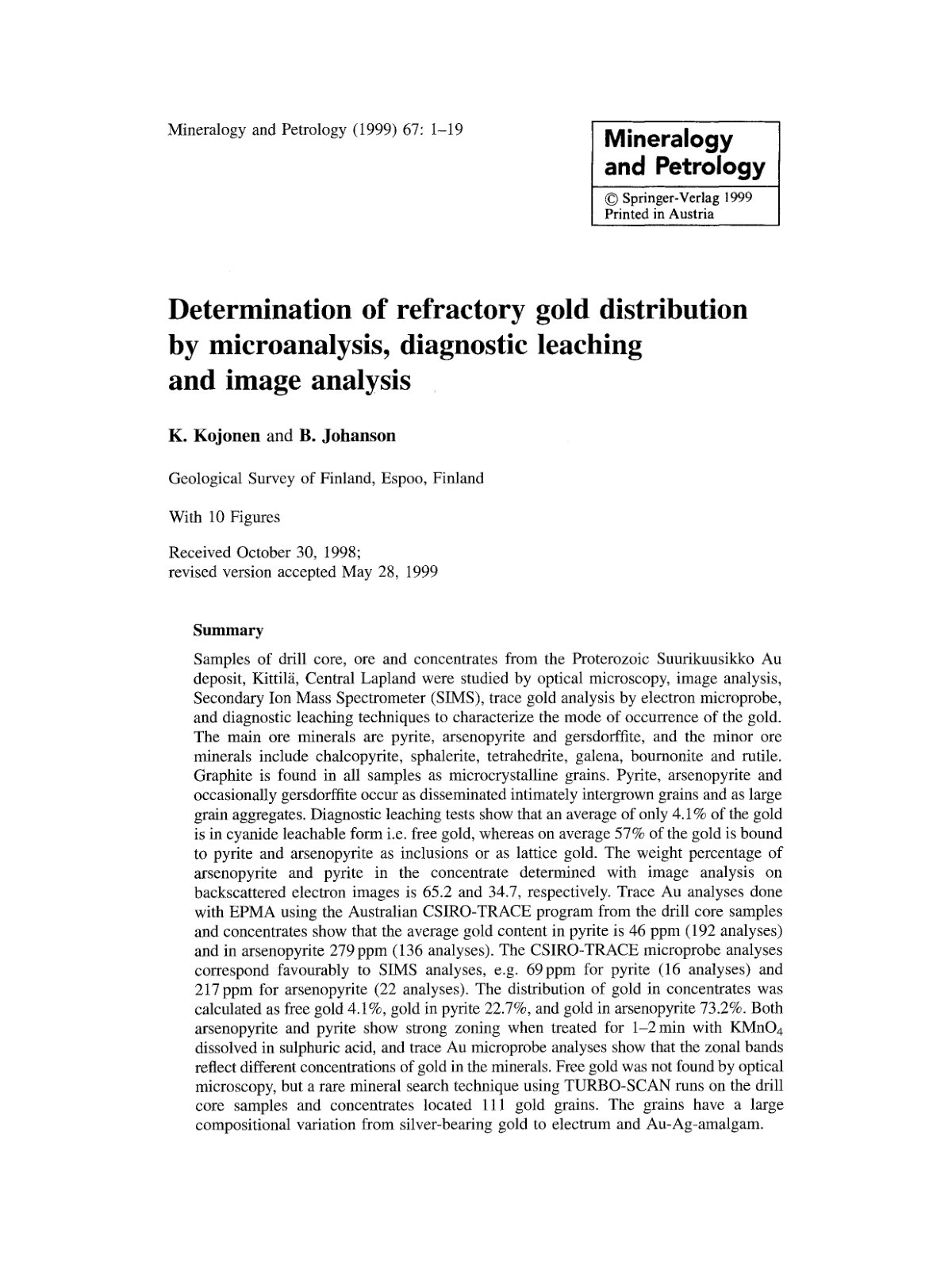

Determination of refractory gold distrib

Samples of drill core, ore and concentrates from the Proterozoic Suurikuusikko Au deposit, Kittilä, Central Lapland were studied by optical microscopy, image analysis, Secondary Ion Mass Spectrometer (SIMS), trace gold analysis by electron microprobe, and diagnostic leaching techniques to characterize the mode of occurrence of the gold. The main ore minerals are pyrite, arsenopyrite and gensdorfite, and the minor ore minerals include chalcopyrite, sphalerite, tetrahedrite, galena, bournonite and rutile. Graphite is found in all samples as microcrystalline grains. Pyrite, arsenopyrite and occasionally goethite occur as disseminated intimately intergrown grains and large grain aggregates. Diagnostic leaching tests show that an average of only 4.1% of the gold is in cyanide leachable form i.e. free gold, whereas on average 57% of the gold is bound to pyrite and arsenopyrite as inclusions or as lattice gold. The weight percentage of arsenopyrite and pyrite in the concentrate determined with image analysis on backscattered electron images is 65.2 and 34.7, respectively. Trace Au analyses done with EPMA using the Australian CSIRO-TRACE program from the drill core samples and concentrates show that the average gold content in pyrite is 46 ppm (192 analyses) and in arsenopyrite 279 ppm (136 analyses). The distribution of gold in concentrates was calculated as free gold 4.1%, gold in pyrite 22.7%, and gold in arsenopyrite 73.2%.
