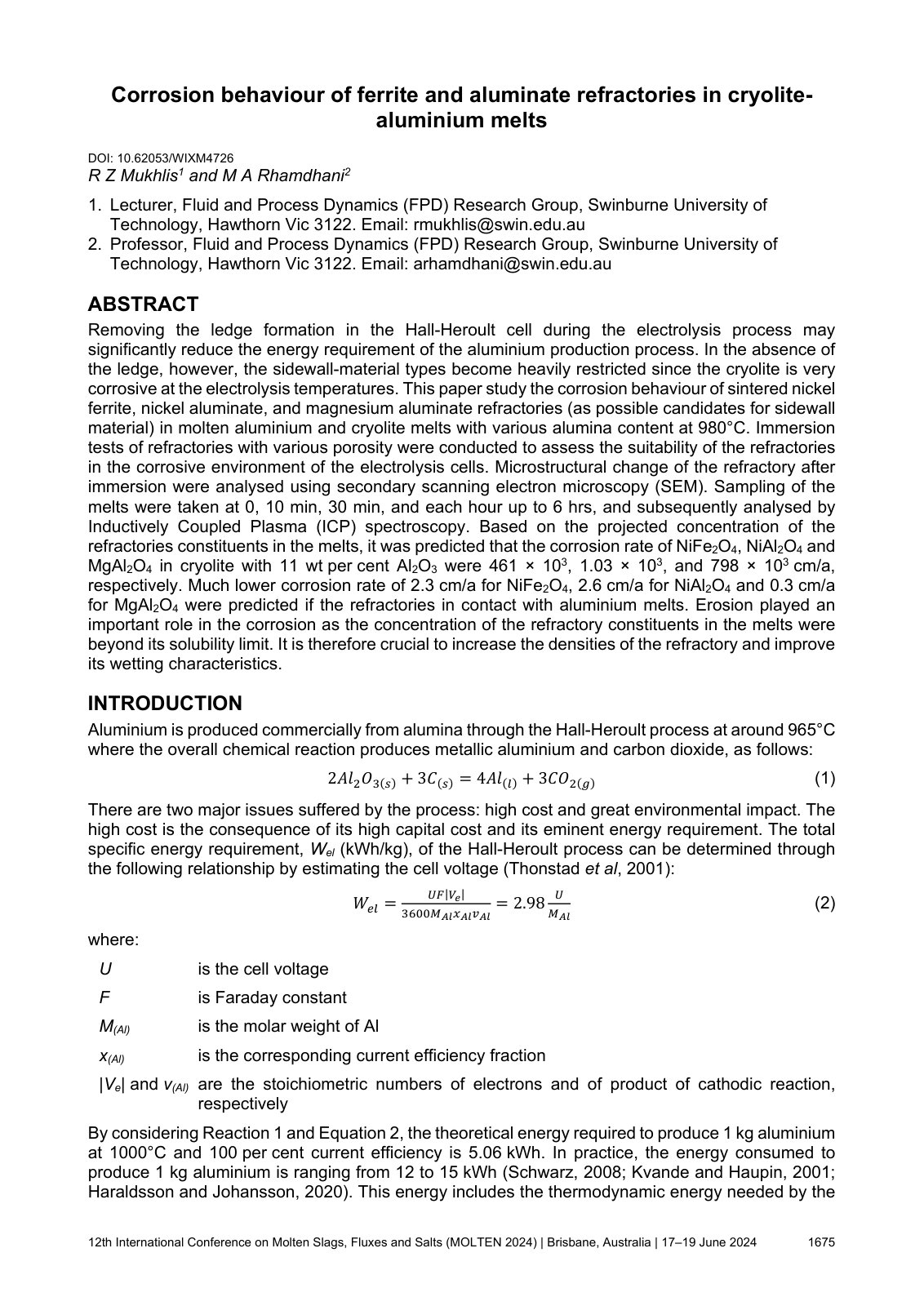

Corrosion behaviour of ferrite and aluminate refractories in cryolite-aluminium melts

Removing the ledge formation in the Hall-Heroult cell during the electrolysis process may significantly reduce the energy requirement of the aluminium production process. In the absence of the ledge, however, the sidewall-material types become heavily restricted since the cryolite is very corrosive at the electrolysis temperatures. This paper study the corrosion behaviour of sintered nickel ferrite, nickel aluminate, and magnesium aluminate refractories (as possible candidates for sidewall material) in molten aluminium and cryolite melts with various alumina content at 980°C. Immersion tests of refractories with various porosity were conducted to assess the suitability of the refractories in the corrosive environment of the electrolysis cells. Microstructural change of the refractory after immersion were analysed using secondary scanning electron microscopy (SEM). Sampling of the melts were taken at 0, 10 min, 30 min, and each hour up to 6 hrs, and subsequently analysed by Inductively Coupled Plasma (ICP) spectroscopy. Based on the projected concentration of the refractories constituents in the melts, it was predicted that the corrosion rate of NiFe2O4, NiAl2O4 and MgAl2O4 in cryolite with 11 wt per cent Al2O3 were 461 × 10 3, 1.03 × 10 3, and 798 × 10 3 cm/a, respectively. Much lower corrosion rate of 2.3 cm/a for NiFe2O4, 2.6 cm/a for NiAl2O4 and 0.3 cm/a for MgAl2O4 were predicted if the refractories in contact with aluminium melts. Erosion played an important role in the corrosion as the concentration of the refractory constituents in the melts were beyond its solubility limit. It is therefore crucial to increase the densities of the refractory and improve its wetting characteristics.
