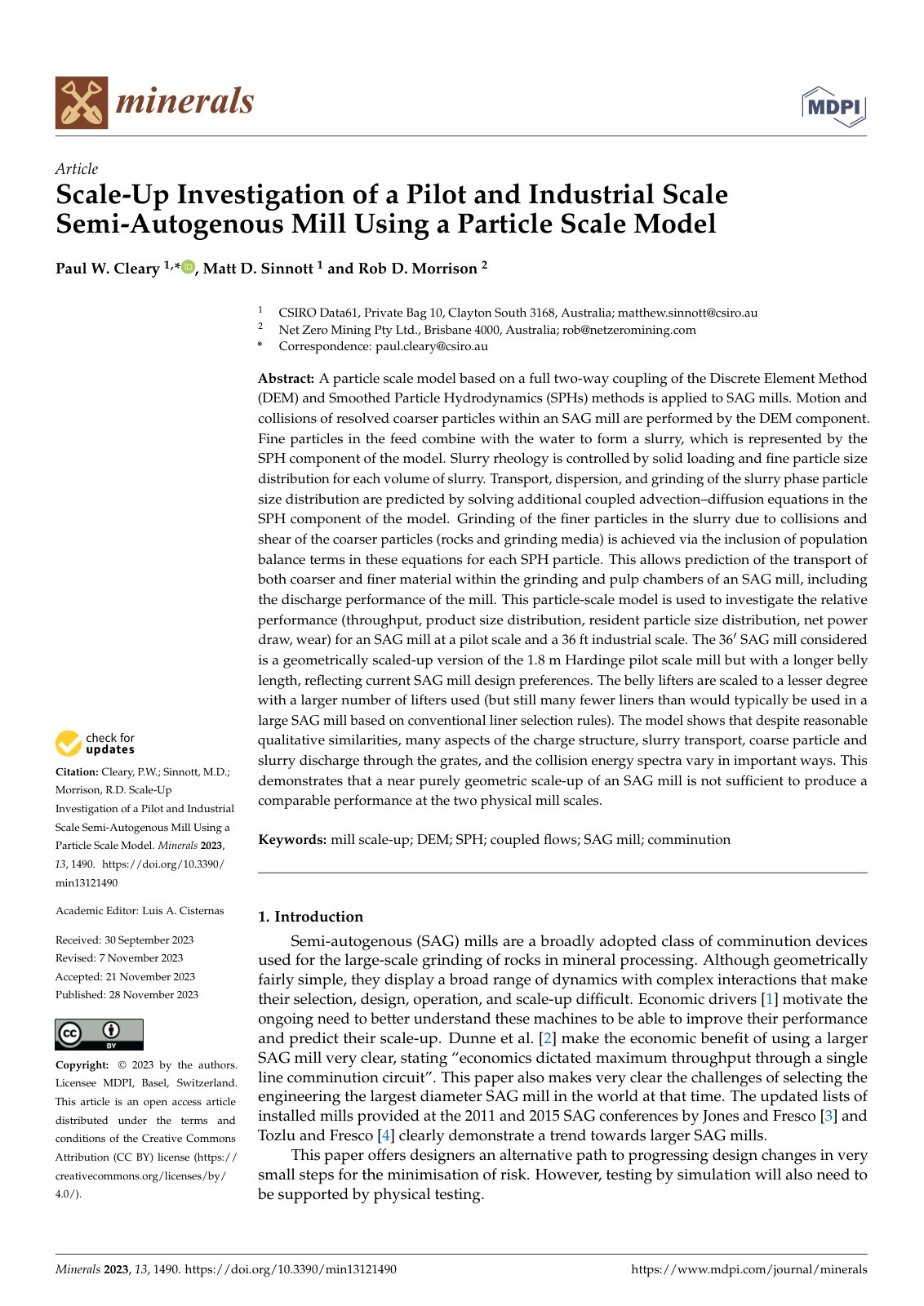

Scale-Up Investigation of a Pilot and Industrial Scale Semi-Autogenous Mill Using a Particle Scale Model

A particle scale model based on a full two-way coupling of the Discrete Element Method (DEM) and Smoothed Particle Hydrodynamics (SPH) methods is applied to SAG mills. Motion and collisions of resolved coarser particles within an SAG mill are performed by the DEM component. Fine particles in the feed combine with the water to form a slurry, which is represented by the SPH component of the model. Slurry rheology is controlled by solid loading and fine particle size distribution for each volume of slurry. Transport, dispersion, and grinding of the slurry phase particle size distribution are predicted by solving additional coupled advection–diffusion equations in the SPH component of the model. Grinding of the finer particles in the slurry due to collisions and shear of the coarser particles (rocks and grinding media) is achieved via the inclusion of population balance terms in these equations for each SPH particle. This allows prediction of the transport of both coarser and finer material within the grinding and pulp chambers of an SAG mill, including the discharge performance of the mill. This particle-scale model is used to investigate the relative performance (throughput, product size distribution, resident particle size distribution, net power draw, wear) for an SAG mill at a pilot scale and a 36 ft industrial scale.
