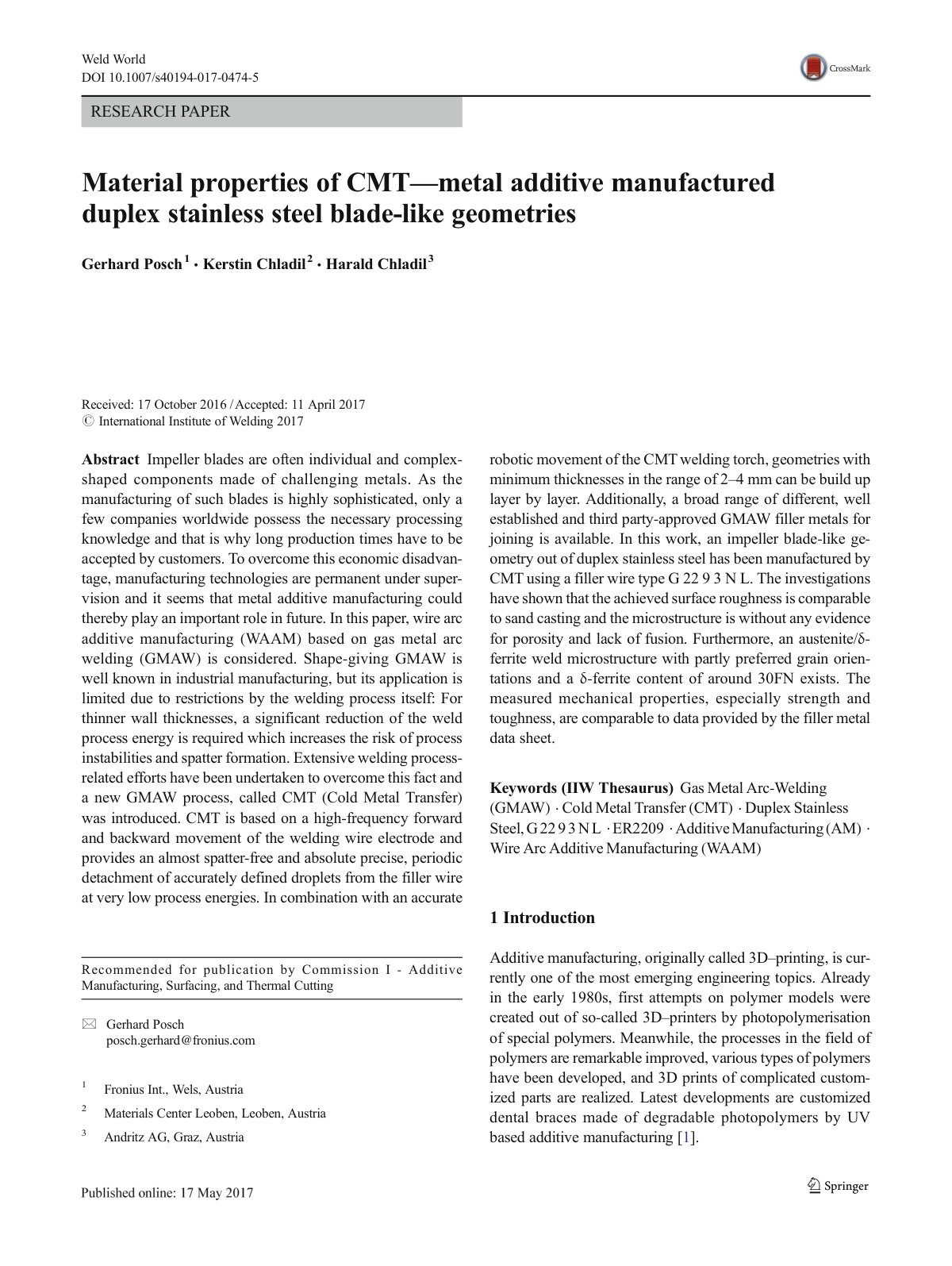

Material properties of CMT—metal additive manufactured duplex stainless steel blade-like geometries

Impeller blades are often individual and complex-shaped components made of challenging metals. As the manufacturing of such blades is highly sophisticated, only a few companies worldwide possess the necessary processing knowledge and that is why long production times have to be accepted by customers. To overcome this economic disadvantage, manufacturing technologies are permanent under supervision and it seems that metal additive manufacturing could thereby play an important role in future. In this paper, wire arc additive manufacturing (WAAM) based on gas metal arc welding (GMAW) is considered. Shape-giving GMAW is well known in industrial manufacturing, but its application is limited due to restrictions by the welding process itself: For thinner wall thicknesses, a significant reduction of the weld process energy is required which increases the risk of process instabilities and spatter formation. Extensive welding process-related efforts have been undertaken to overcome this fact and a new GMAW process, called CMT (Cold Metal Transfer) was introduced. CMT is based on a high-frequency forward and backward movement of the welding wire electrode and provides an almost spatter-free and absolute precise, periodic detachment of accurately defined droplets from the filler wire at very low process energies. In combination with an accurate robotic movement of the CMT welding torch, geometries with minimum thicknesses in the range of 2–4 mm can be built up layer by layer. The investigations have shown that the achieved surface roughness is comparable to sand casting and the microstructure is without any evidence for porosity and lack of fusion.
