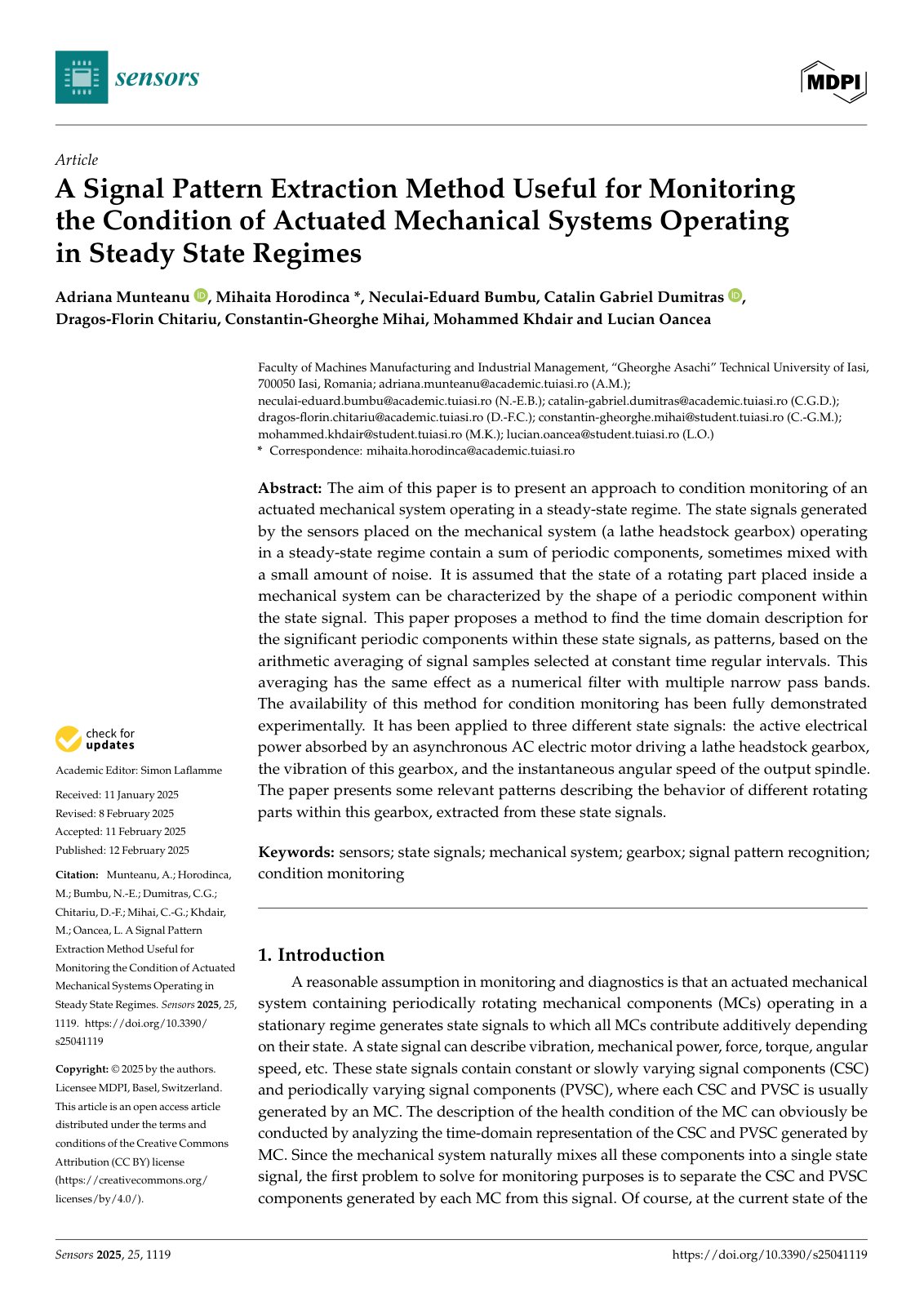

A Signal Pattern Extraction Method Useful for Moni

The aim of this paper is to present an approach to condition monitoring of an actuated mechanical system operating in a steady state regime. The state signals generated by the sensors placed on the mechanical system (a lathe headstock gearbox) operating in a steady-state regime contain a sum of periodic components, sometimes mixed with a small amount of noise. It is assumed that the state of a rotating part placed inside a mechanical system can be characterized by the shape of a periodic component within the state signal. This paper proposes a method to find the time domain description for the significant periodic components within these state signals, as patterns, based on the arithmetic averaging of signal samples selected at constant time regular intervals. This averaging has the same effect as a numerical filter with multiple narrow pass bands. The availability of this method for condition monitoring has been fully demonstrated experimentally. It has been applied to three different state signals: the active electrical power absorbed by an asynchronous AC electric motor driving a lathe headstock gearbox, the vibration of this gearbox, and the instantaneous angular speed of the output spindle. The paper presents some relevant patterns describing the behavior of different rotating parts within this gearbox, extracted from these state signals.
