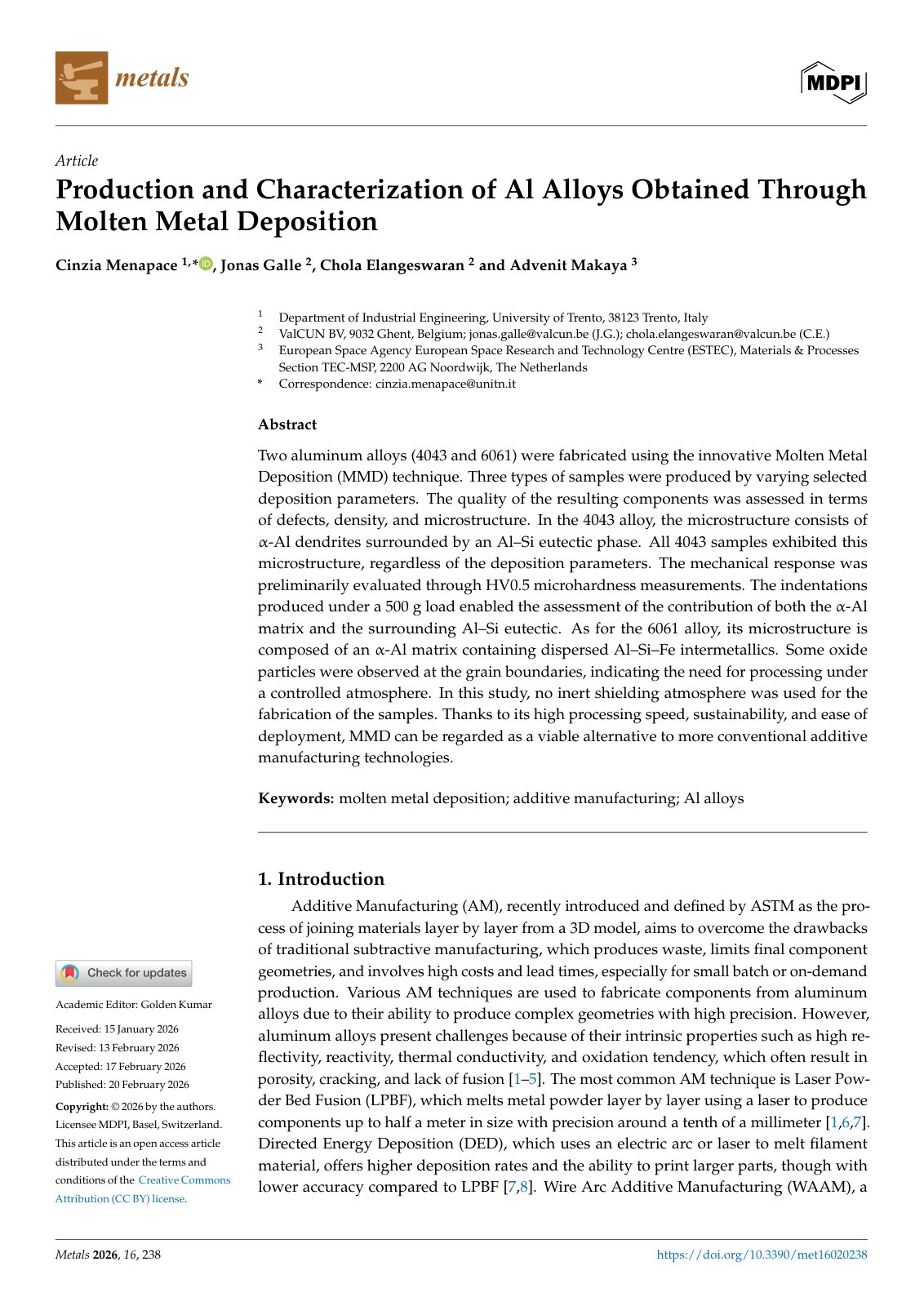

2026 Menapace Al Alloys Molten Metal Deposition

Two aluminum alloys (4043 and 6061) were fabricated using the innovative Molten Metal Deposition (MMD) technique. Three types of samples were produced by varying selected deposition parameters. The quality of the resulting components was assessed in terms of defects, density, and microstructure. In the 4043 alloy, the microstructure consists of α-Al dendrites surrounded by an Al–Si eutectic phase. All 4043 samples exhibited this microstructure, regardless of the deposition parameters. The mechanical response was preliminarily evaluated through HV0.5 microhardness measurements. The indentations produced under a 500 g load enabled the assessment of the contribution of both the α-Al matrix and the surrounding Al–Si eutectic. As for the 6061 alloy, its microstructure is composed of an α-Al matrix containing dispersed Al–Si–Fe intermetallics. Some oxide particles were observed at the grain boundaries, indicating the need for processing under a controlled atmosphere. In this study, no inert shielding atmosphere was used for the fabrication of the samples. Thanks to its high processing speed, sustainability, and ease of deployment, MMD can be regarded as a viable alternative to more conventional additive manufacturing technologies.
