I B Plecas, R S Pavlovic

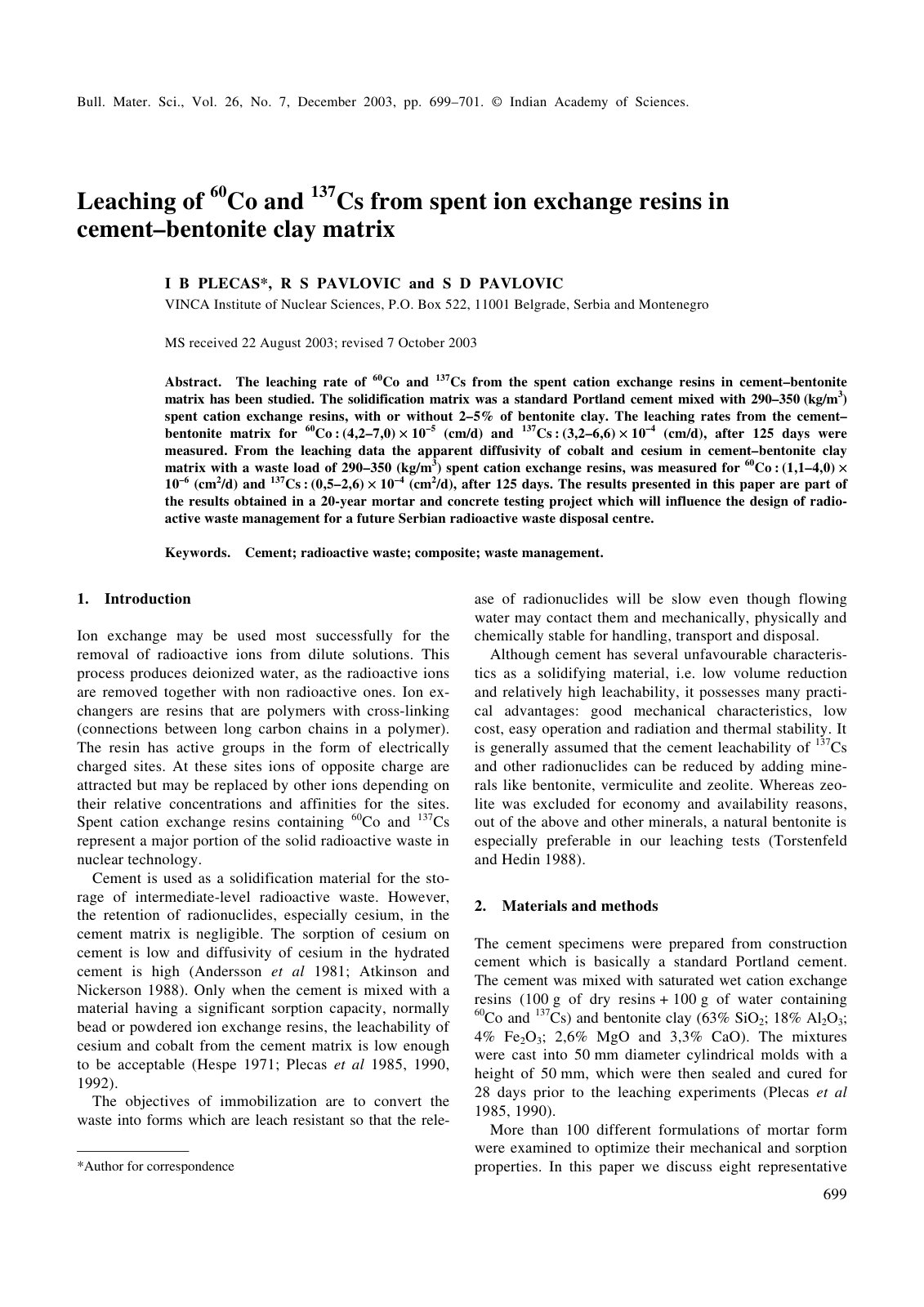

The leaching rate of 60Co and 137Cs from the spent cation exchange resins in a cement–bentonite matrix has been studied. The solidification matrix consisted of standard Portland cement mixed with 290–350 kg/m3 spent cation exchange resins, with or without 2–5% bentonite clay. Leaching rates from the cement–bentonite matrix after 125 days were measured as follows: 60Co at (4.2–7.0) × 10–5 cm/d and 137Cs at (3.2–6.6) × 10–4 cm/d. The apparent diffusivity of cobalt and cesium in this matrix with a waste load of 290–350 kg/m3 spent cation exchange resins was determined to be 60Co at (1.1–4.0) × 10–6 cm2/d and 137Cs at (0.5–2.6) × 10–4 cm2/d. These results are part of a 20-year mortar and concrete testing project, which aims to influence the design of radioactive waste management strategies for a future Serbian radioactive waste disposal center.
@article{c315638f-5f94-49f2-8048-7a025b50cadc,
title={Leaching of 60Co and 137Cs from spent ion exchange resins in cement–bentonite clay matrix},
author={I B Plecas and R S Pavlovic},
year={2003},
language={en}
}TY - JOUR TI - Leaching of 60Co and 137Cs from spent ion exchange resins in cement–bentonite clay matrix AU - I B Plecas AU - R S Pavlovic PY - 2003 LA - en ER -
Jirang Cui, Hans Jørgen Roven
Rapid growth in electronic equipment consumption has generated large quantities of electronic waste containing hazardous substances and high-value met
Santhana Krishnan, Nor Syahidah Zulkapli
Fast industrialization has increased the demand for heavy metals, while high-grade ore natural reserves are diminishing. Therefore, alternative source
The Australasian Institute of Mining and Metallurgy
This conference, held in Perth, Western Australia, focuses on the latest advancements in metallurgical processing plant design and operational strateg
A. Ryan, E. Johanson
The design of process plants for feasibility studies must address several key objectives, including feasibility and constructibility, while focusing o
Chiranjib Kumar Gupta
This book provides a comprehensive overview of the field of chemical metallurgy, addressing both common and less common metals. The objective of the v
