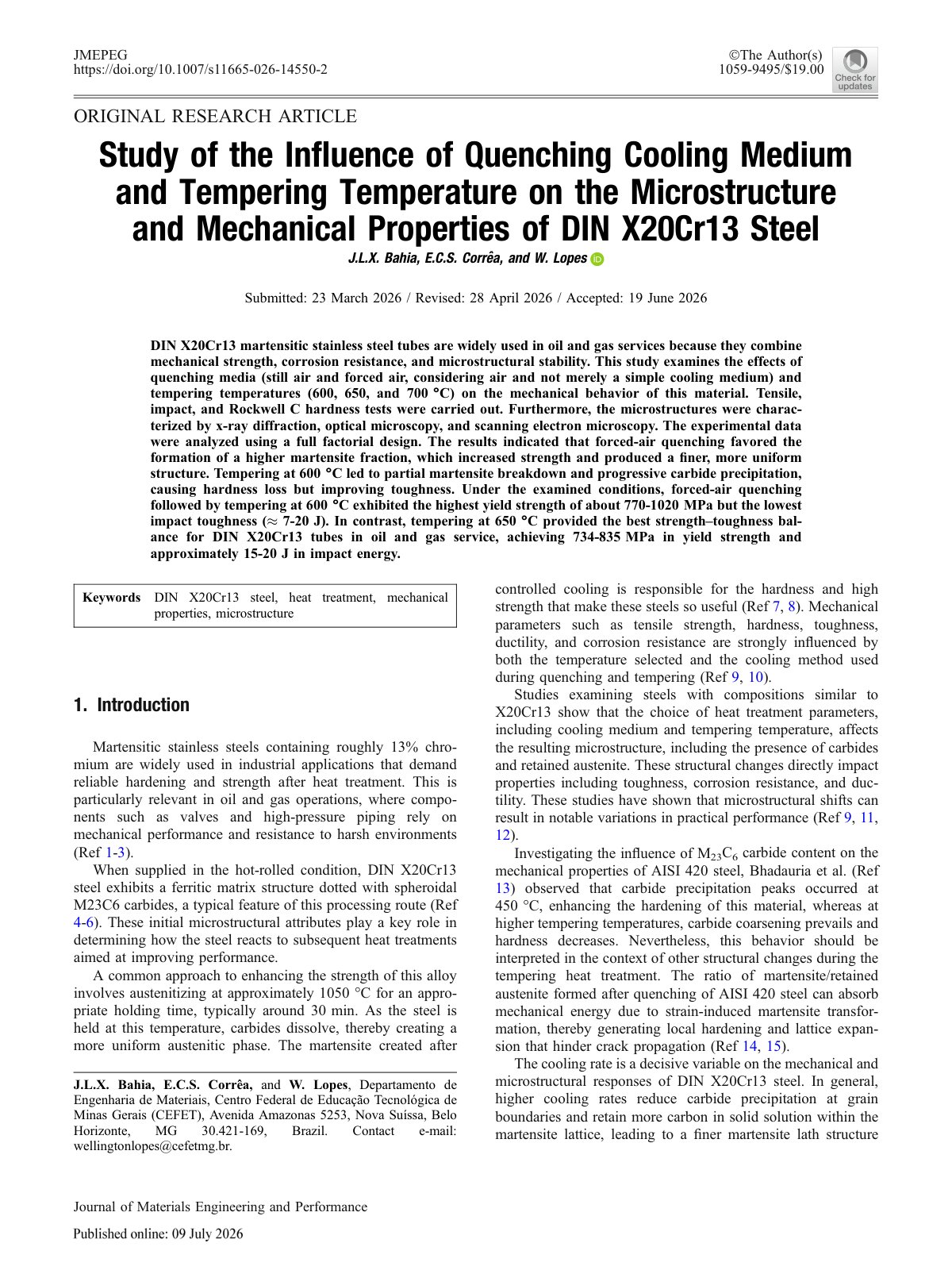

2026 Bahia X20Cr13 Quenching Tempering

DIN X20Cr13 martensitic stainless steel tubes are widely used in oil and gas services due to their mechanical strength, corrosion resistance, and microstructural stability. This study investigates the influence of different quenching media (still air and forced air) and various tempering temperatures (600, 650, and 700 °C) on the material's mechanical characteristics. The methodology involved conducting tensile, impact, and Rockwell C hardness tests, alongside microstructural characterization using x-ray diffraction, optical microscopy, and scanning electron microscopy. A full factorial design analyzed the experimental data. Results indicated that forced-air quenching enhanced the formation of a higher martensite fraction, which in turn improved strength and resulted in a finer, more uniform microstructure. Tempering at 600 °C caused partial martensite breakdown and carbide precipitation, leading to a loss in hardness while enhancing toughness. The optimal conditions identified were forced-air quenching followed by tempering at 600 °C, achieving the highest yield strength of approximately 770-1020 MPa but with the lowest impact toughness (7-20 J). In contrast, tempering at 650 °C offered the best compromise between strength and toughness, yielding strengths of 734-835 MPa and approximately 15-20 J in impact energy.
