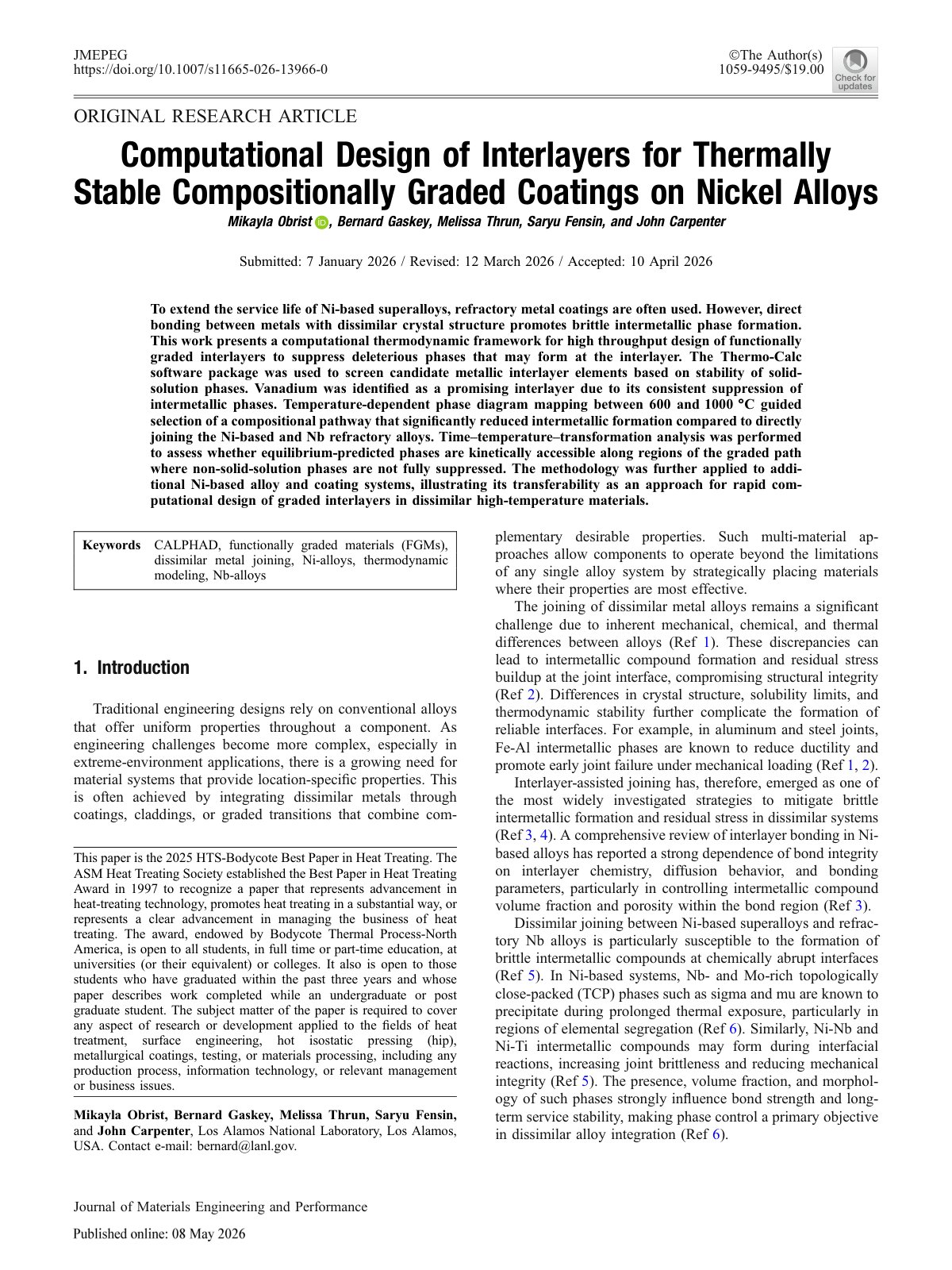

2026 Obrist Thermally Stable Graded Coatings

To extend the service life of Ni-based superalloys, refractory metal coatings are often used. However, direct bonding between metals with dissimilar crystal structures promotes brittle intermetallic phase formation. This work presents a computational thermodynamic framework for high throughput design of functionally graded interlayers to suppress deleterious phases that may form at the interlayer. The Thermo-Calc software package was used to screen candidate metallic interlayer elements based on the stability of solid-solution phases. Vanadium was identified as a promising interlayer due to its consistent suppression of intermetallic phases. Temperature-dependent phase diagram mapping between 600 and 1000 °C guided selection of a compositional pathway that significantly reduced intermetallic formation compared to directly joining the Ni-based and Nb refractory alloys. Time–temperature–transformation analysis was performed to assess whether equilibrium-predicted phases are kinetically accessible along regions of the graded path where non-solid-solution phases are not fully suppressed. The methodology was further applied to additional Ni-based alloy and coating systems, illustrating its transferability as an approach for rapid computational design of graded interlayers in dissimilar high-temperature materials.
