G.E.Hicho, W.J.Boettinger
We have examined the failed or "mishap" section, and other selected sections made from 17-7 precipitation hardening stainless steel, and have concluded that the unusually large amount of retained austenite, greater than 7%, measured on the surface appears to have been produced during both the solution annealing and austenite conditioning steps of the heat treating process, but was revealed only after the austenite conditioning step. We suspect that during the heat treating process these sections may have been exposed to a furnace atmosphere that contained too much carbon or nitrogen. This exposure could have led to an increase in the amount of retained austenite both on the surface and internally.
@article{cac8940c-b96d-478c-b4b9-5c799f776888,

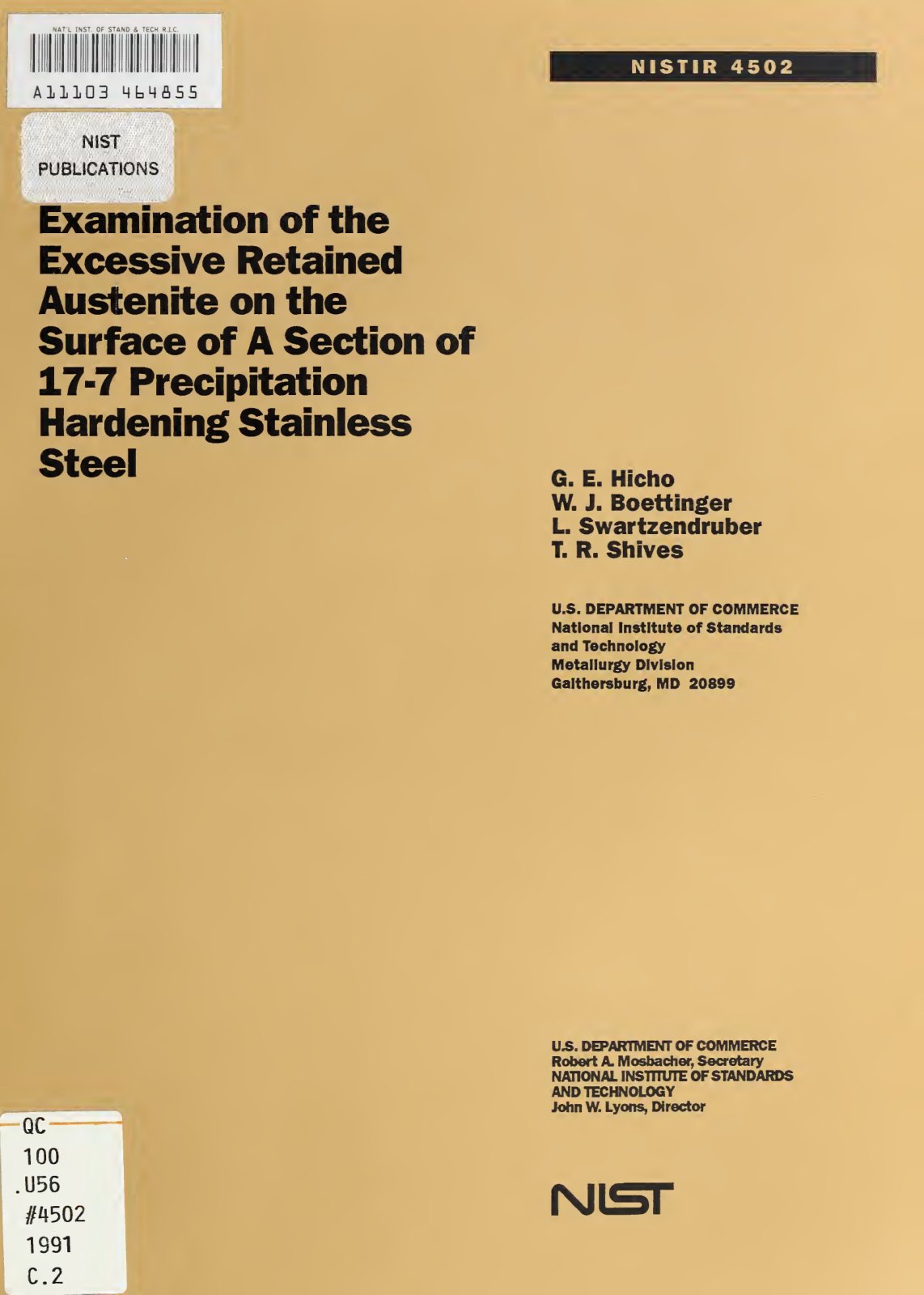

title={Examination of the excessive retained austenite on the surface of a section of 17-7 precipitation hardening stainless steel},
author={G.E.Hicho and W.J.Boettinger},
year={1991},
language={English}
}TY - JOUR TI - Examination of the excessive retained austenite on the surface of a section of 17-7 precipitation hardening stainless steel AU - G.E.Hicho AU - W.J.Boettinger PY - 1991 LA - English ER -
Mirjana Filipović, Željko Kamberović, Marija Korać
Experimental results indicate that the volume fraction of the carbide phase, carbide size and distribution had an important influence on the wear resi
Department of Mechanical Engineering, ESEC
This paper discusses the crucial role of the iron-iron carbide diagram in engineering alloys, particularly in the development of important materials s
Robert A. Francis
This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact
Roger Rumbu
Mirjana FILIPOVIC, Endre ROMHANJI and Zeljko KAMBEROVIC
The chemical composition and morphology of M7C3 eutectic carbides in 19 mass% Cr–2.8 mass% C white iron with up to 4.7 mass% V additions have been stu
