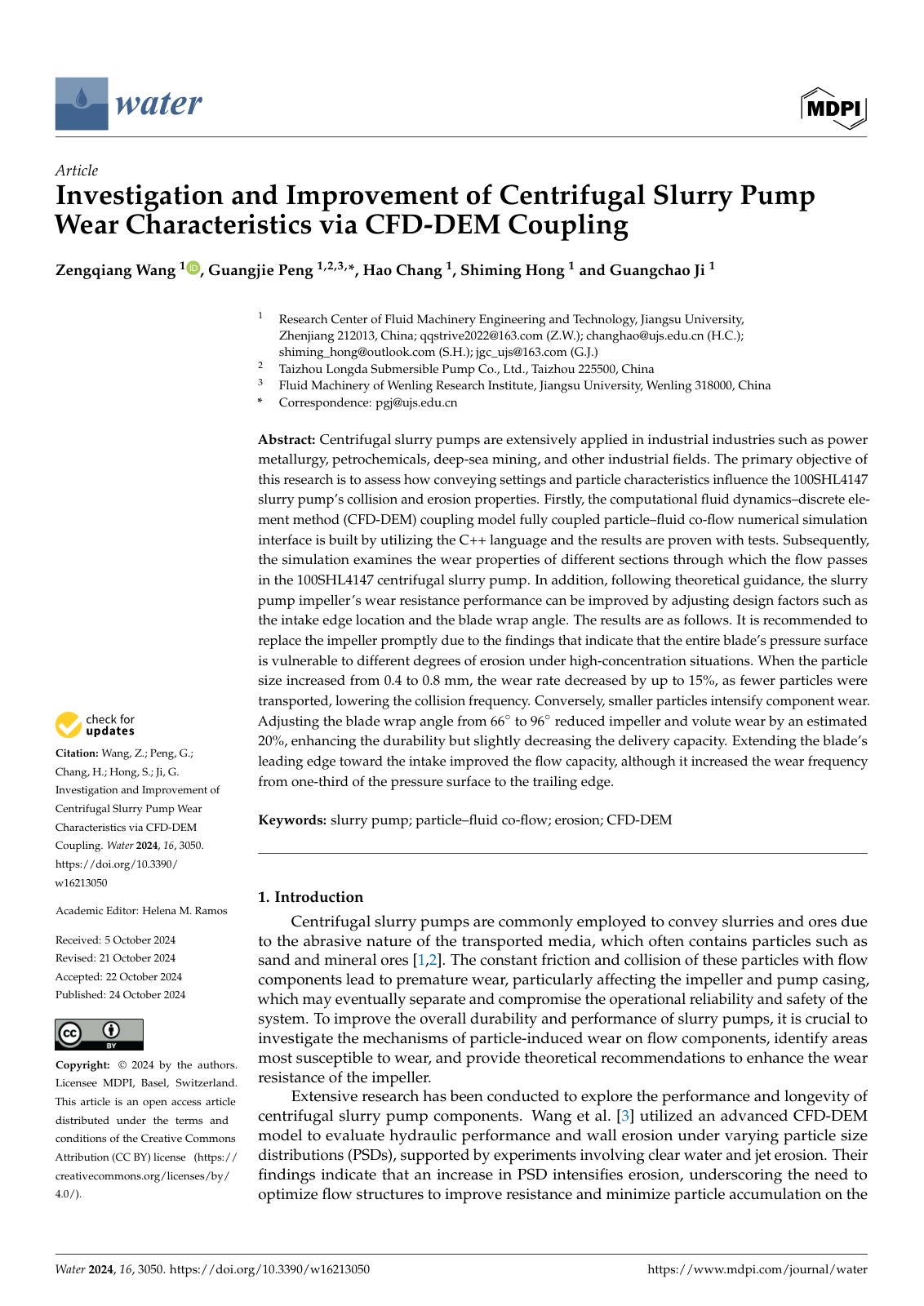

Investigation and Improvement of Centrifugal Slurry Pump Wear Characteristics via CFD-DEM Coupling

Centrifugal slurry pumps are extensively applied in industrial industries such as power metallurgy, petrochemicals, deep-sea mining, and other industrial fields. The primary objective of this research is to assess how conveying settings and particle characteristics influence the 100SHL4147 slurry pump’s collision and erosion properties. Firstly, the computational fluid dynamics–discrete element method (CFD-DEM) coupling model fully coupled particle–fluid co-flow numerical simulation interface is built by utilizing the C++ language and the results are proven with tests. Subsequently, the simulation examines the wear properties of different sections through which the flow passes in the 100SHL4147 centrifugal slurry pump. In addition, following theoretical guidance, the slurry pump impeller’s wear resistance performance can be improved by adjusting design factors such as the intake edge location and the blade wrap angle. The results are as follows. It is recommended to replace the impeller promptly due to the findings that indicate that the entire blade’s pressure surface is vulnerable to different degrees of erosion under high-concentration situations. When the particle size increased from 0.4 to 0.8 mm, the wear rate decreased by up to 15%, as few.
