D. M. Fellicia, M. I. Pownceby

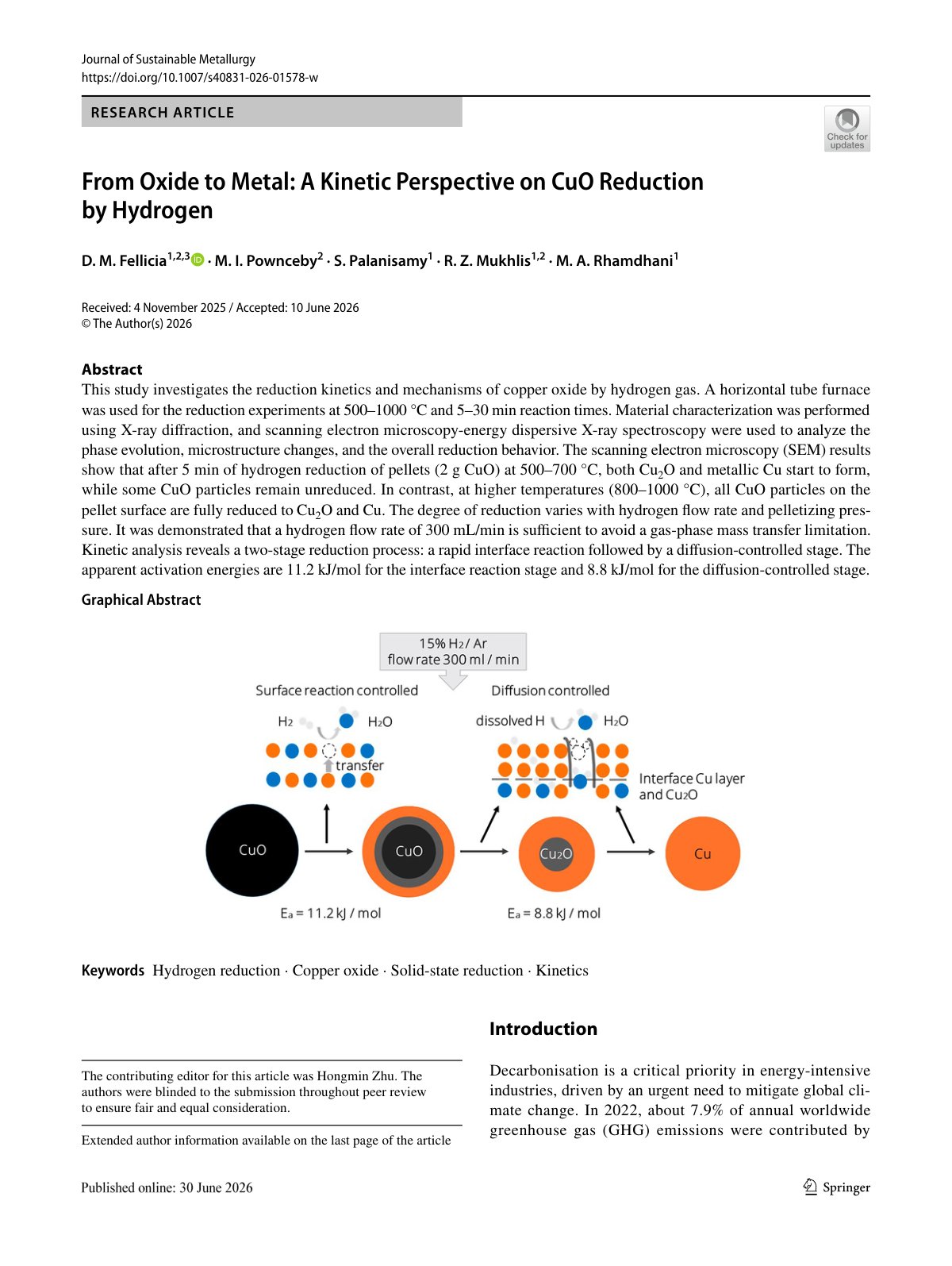

This study investigates the reduction kinetics and mechanisms of copper oxide by hydrogen gas. A horizontal tube furnace was used for the reduction experiments at 500–1000 °C and 5–30 min reaction times. Material characterization was performed using X-ray diffraction, and scanning electron microscopy-energy dispersive X-ray spectroscopy were used to analyze the phase evolution, microstructure changes, and the overall reduction behavior. The scanning electron microscopy (SEM) results show that after 5 min of hydrogen reduction of pellets (2 g CuO) at 500–700 °C, both Cu2O and metallic Cu start to form, while some CuO particles remain unreduced. In contrast, at higher temperatures (800–1000 °C), all CuO particles on the pellet surface are fully reduced to Cu2O and Cu. The degree of reduction varies with hydrogen flow rate and pelletizing pressure. It was demonstrated that a hydrogen flow rate of 300 mL/min is sufficient to avoid a gas-phase mass transfer limitation. Kinetic analysis reveals a two-stage reduction process: a rapid interface reaction followed by a diffusion-controlled stage. The apparent activation energies are 11.2 kJ/mol for the interface reaction stage and 8.8 kJ/mol for the diffusion-controlled stage.
@article{d4b58db5-5772-4376-83af-6d316a323c1f,
title={From Oxide to Metal: A Kinetic Perspective on CuO Reduction by Hydrogen},
author={D. M. Fellicia and M. I. Pownceby},
year={2026},
language={en}
}TY - JOUR TI - From Oxide to Metal: A Kinetic Perspective on CuO Reduction by Hydrogen AU - D. M. Fellicia AU - M. I. Pownceby PY - 2026 LA - en ER -
Mark E. Schlesinger, Matthew J. King
This book presents a comprehensive overview of the principles and practices of copper extraction metallurgy. The objective is to provide both a theore
The leachability tests for manufacturing scrap TV boards (STVB) have indicated the release of metals beyond the limit levels with potential problems f
Alain Vignes
This book provides a comprehensive overview of the various processing operations and routes in extractive metallurgy. The objective is to present a de
Blair Burwell
The exhaustion of current vanadium sources and the emergence of new applications are driving the need for innovative methods of extraction. The aim of
FATHI HABASHI
In the past few years, extractive metallurgy has been advancing gradually, despite the absence of remarkable new ideas. This paper aims to summarize t
