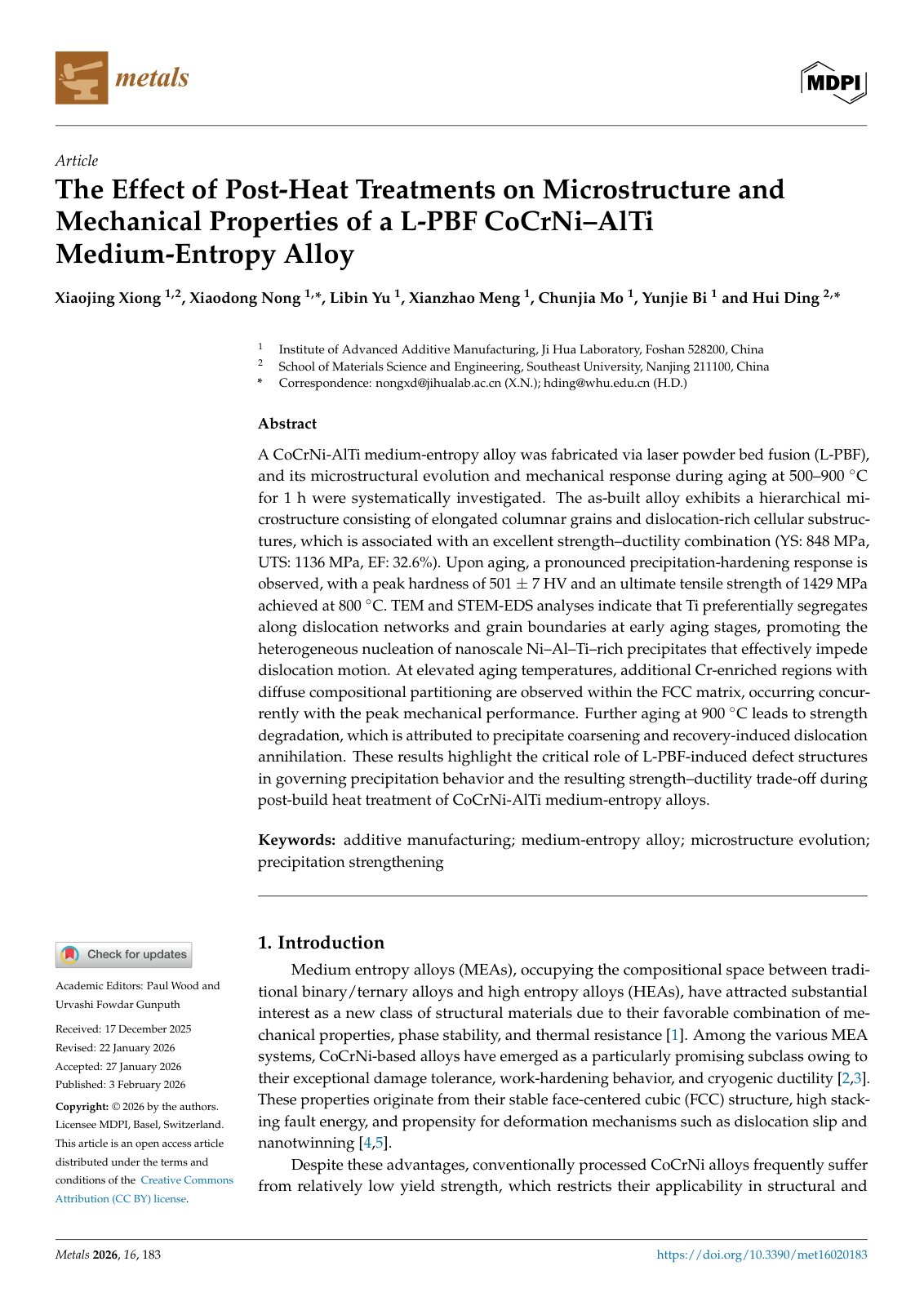

The Effect of Post-Heat Treatments on Microstructure and Mechanical Properties of a L-PBF CoCrNi–AlTi Medium-Entropy Alloy

A CoCrNi-AlTi medium-entropy alloy was fabricated via laser powder bed fusion (L-PBF), and its microstructural evolution and mechanical response during aging at 500–900 ◦C for 1 h were systematically investigated. The as-built alloy exhibits a hierarchical microstructure consisting of elongated columnar grains and dislocation-rich cellular substructures, which is associated with an excellent strength–ductility combination (YS: 848 MPa, UTS: 1136 MPa, EF: 32.6%). Upon aging, a pronounced precipitation-hardening response is observed, with a peak hardness of 501 ± 7 HV and an ultimate tensile strength of 1429 MPa achieved at 800 ◦C. TEM and STEM-EDS analyses indicate that Ti preferentially segregates along dislocation networks and grain boundaries at early aging stages, promoting the heterogeneous nucleation of nanoscale Ni–Al–Ti–rich precipitates that effectively impede dislocation motion. At elevated aging temperatures, additional Cr-enriched regions with diffuse compositional partitioning are observed within the FCC matrix, occurring concurrently with the peak mechanical performance. Further aging at 900 ◦C leads to strength degradation, which is attributed to precipitate coarsening and recovery-induced dislocation annihilation. These results highlight the critical role of L-PBF-induced defect structures in governing precipitation behavior and the resulting strength–ductility trade-off during post-build heat treatment of CoCrNi-AlTi medium-entropy alloys.
