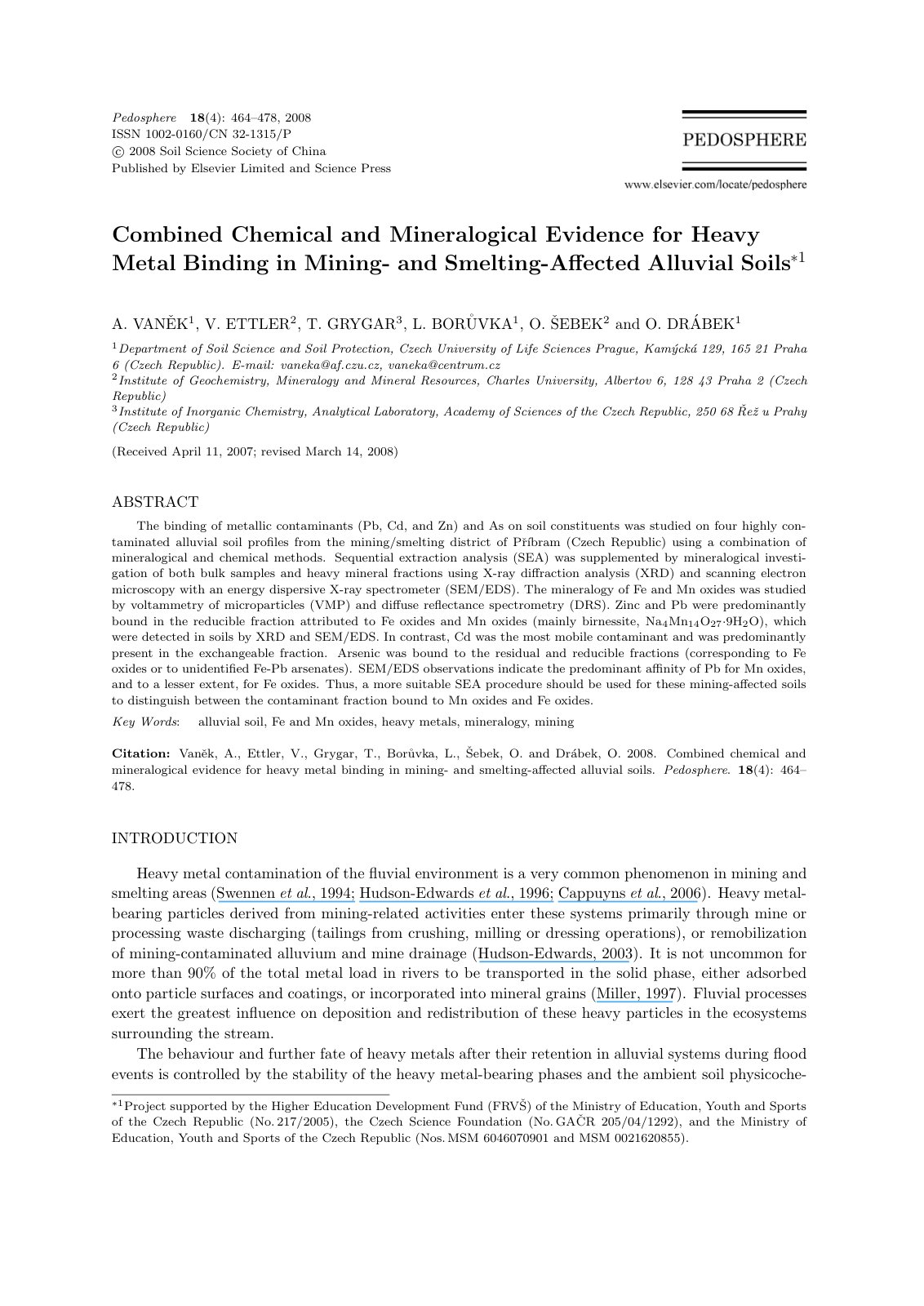

Combined Chemical and Mineralogical Evidence for Heavy Metal Binding in Mining- and Smelting-Affected Alluvial Soils

The binding of metallic contaminants (Pb, Cd, and Zn) and As on soil constituents was studied on four highly contaminated alluvial soil profiles from the mining/smelting district of Pˇ r´ıbram (Czech Republic) using a combination of mineralogical and chemical methods. Sequential extraction analysis (SEA) was supplemented by mineralogical investigation of both bulk samples and heavy mineral fractions using X-ray diffraction analysis (XRD) and scanning electron microscopy with an energy dispersive X-ray spectrometer (SEM/EDS). The mineralogy of Fe and Mn oxides was studied by voltammetry of microparticles (VMP) and diffuse reflectance spectrometry (DRS). Zinc and Pb were predominantly bound in the reducible fraction attributed to Fe oxides and Mn oxides (mainly birnessite, Na4Mn14O27·9H2O), which were detected in soils by XRD and SEM/EDS. In contrast, Cd was the most mobile contaminant and was predominantly present in the exchangeable fraction. Arsenic was bound to the residual and reducible fractions (corresponding to Fe oxides or to unidentified Fe-Pb arsenates). SEM/EDS observations indicate the predominant affinity of Pb for Mn oxides, and to a lesser extent, for Fe oxides. Thus, a more suitable SEA procedure should be used for these mining-affected soils to distinguish between the contaminant fraction bound to Mn oxides and Fe oxides.
