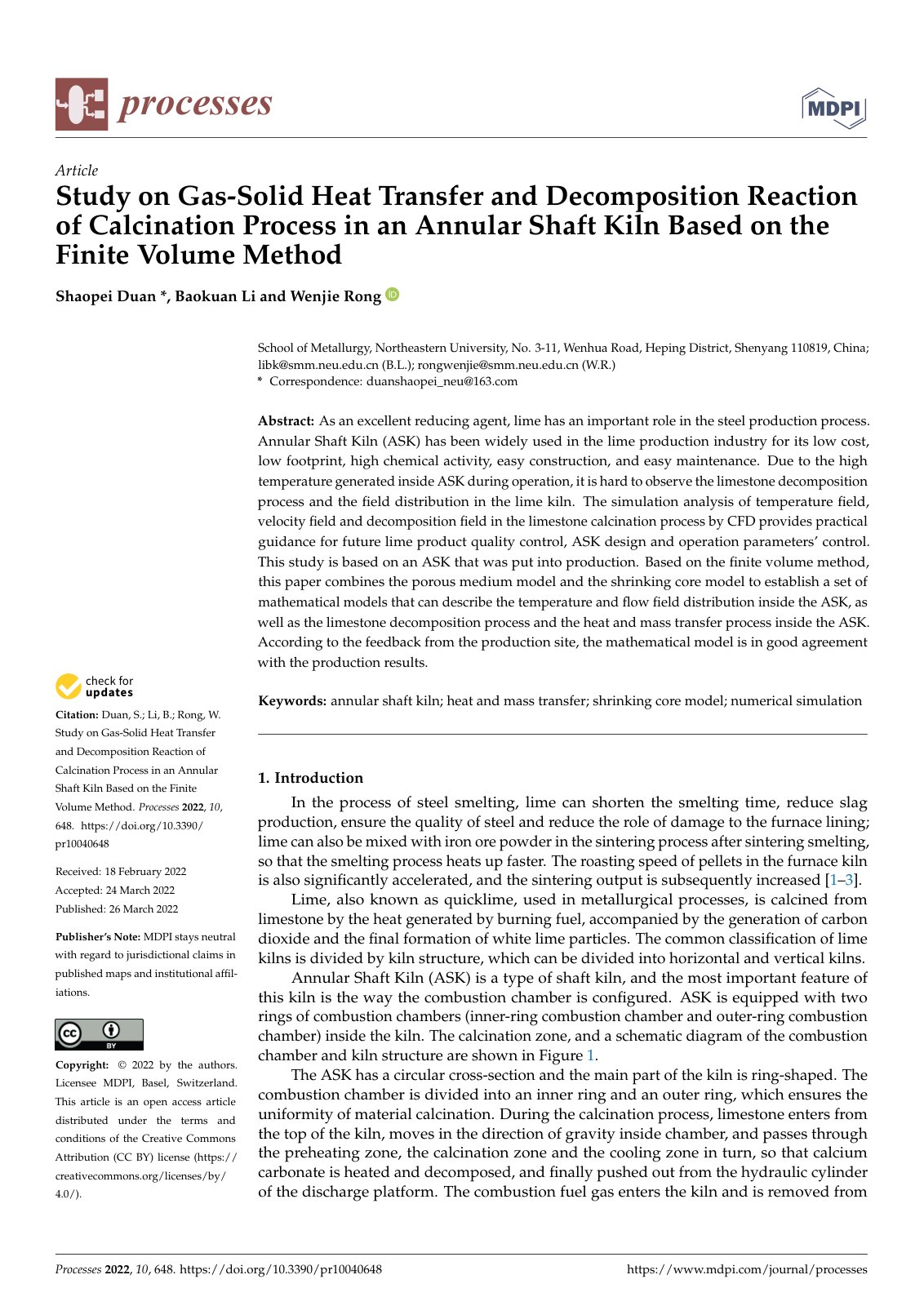

Study on Gas-Solid Heat Transfer and Decomposition Reaction of Calcination Process in an Annular Shaft Kiln Based on the Finite Volume Method

Shaopei Duan, Baokuan Li

2022enheat transfercalcinationfinite volumeannular shaft kilndecomposition

Abstract

Language:

As an excellent reducing agent, lime has an important role in the steel production process. Annular Shaft Kiln (ASK) has been widely used in the lime production industry for its low cost, low footprint, high chemical activity, easy construction, and easy maintenance. Due to the high temperature generated inside ASK during operation, it is hard to observe the limestone decomposition process and the field distribution in the lime kiln. The simulation analysis of temperature field, velocity field and decomposition field in the limestone calcination process by CFD provides practical guidance for future lime product quality control, ASK design and operation parameters’ control. This study is based on an ASK that was put into production. Based on the finite volume method, this paper combines the porous medium model and the shrinking core model to establish a set of mathematical models that can describe the temperature and flow field distribution inside the ASK, as well as the limestone decomposition process and the heat and mass transfer process inside the ASK. According to the feedback from the production site, the mathematical model is in good agreement with the production results.

Download

Cite This Work

@article{dd8dd55a-8388-4ddb-b326-a16ff023bfc7,
  title={Study on Gas-Solid Heat Transfer and Decomposition Reaction of Calcination Process in an Annular Shaft Kiln Based on the Finite Volume Method},
  author={Shaopei Duan and Baokuan Li},
  year={2022},
  language={en}
}
TY  - JOUR
TI  - Study on Gas-Solid Heat Transfer and Decomposition Reaction of Calcination Process in an Annular Shaft Kiln Based on the Finite Volume Method
AU  - Shaopei Duan
AU  - Baokuan Li
PY  - 2022
LA  - en
ER  -
