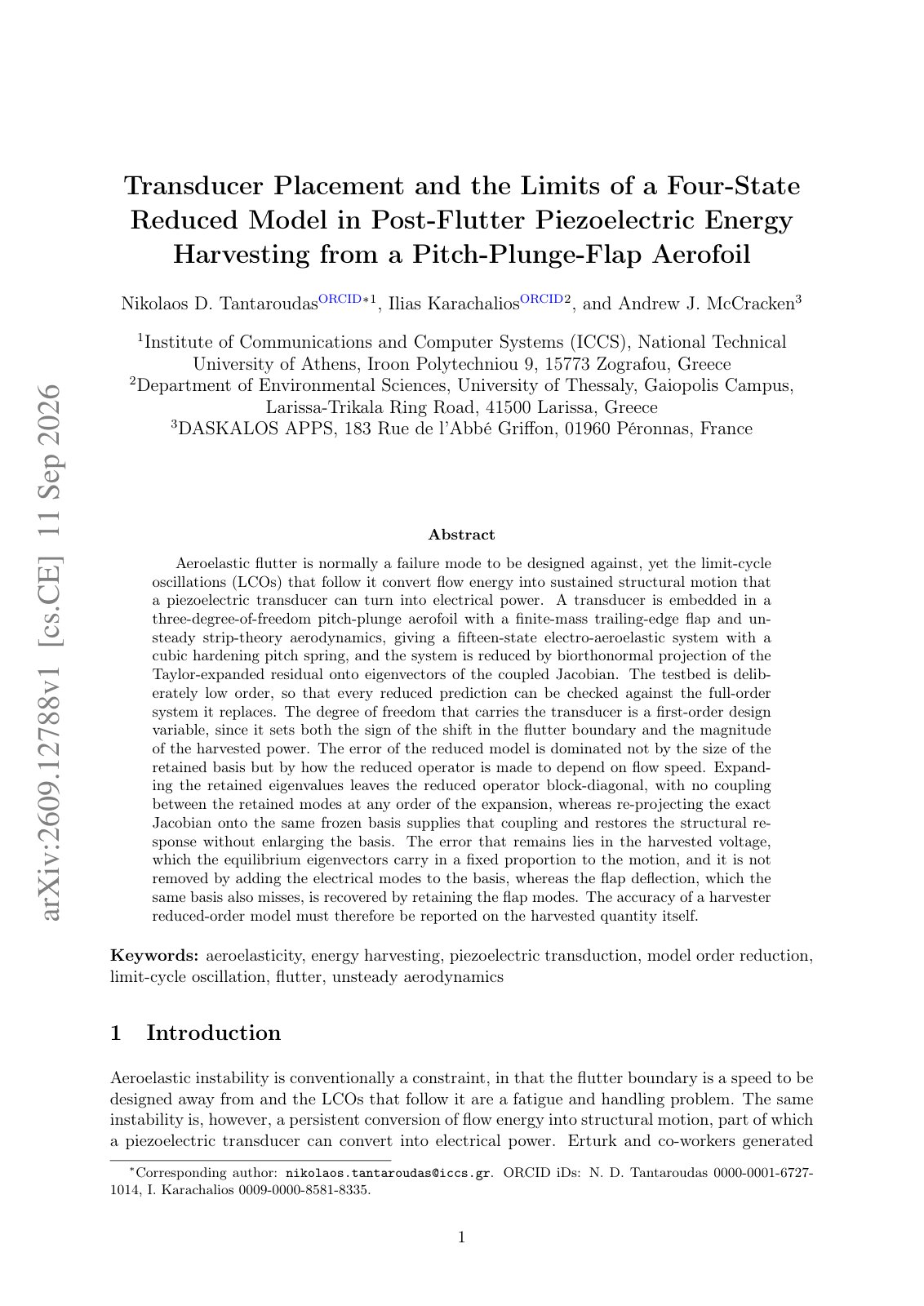

Transducer Placement and the Limits of a Four-State Reduced Model in Post-Flutter Piezoelectric Energy Harvesting from a Pitch-Plunge-Flap Aerofoil

Aeroelastic flutter is normally a failure mode to be designed against, yet the limit-cycle oscillations (LCOs) that follow it convert flow energy into sustained structural motion that a piezoelectric transducer can turn into electrical power. A transducer is embedded in a three-degree-of-freedom pitch-plunge aerofoil with a finite-mass trailing-edge flap and unsteady strip-theory aerodynamics, giving a fifteen-state electro-aeroelastic system with a cubic hardening pitch spring, and the system is reduced by biorthonormal projection of the Taylor-expanded residual onto eigenvectors of the coupled Jacobian. The testbed is deliberately low order, so that every reduced prediction can be checked against the full-order system it replaces. The degree of freedom that carries the transducer is a first-order design variable, since it sets both the sign of the shift in the flutter boundary and the magnitude of the harvested power. The error of the reduced model is dominated not by the size of the retained basis but by how the reduced operator is made to depend on flow speed. Expanding the retained eigenvalues leaves the reduced operator block-diagonal, with no coupling between the retained modes at any order of the expansion, whereas re-projecting the exact Jacobian onto the same frozen basis supplies that coupling and restores the structural response without enlarging the basis. The accuracy of a harvester reduced-order model must therefore be reported on the harvested quantity itself.
