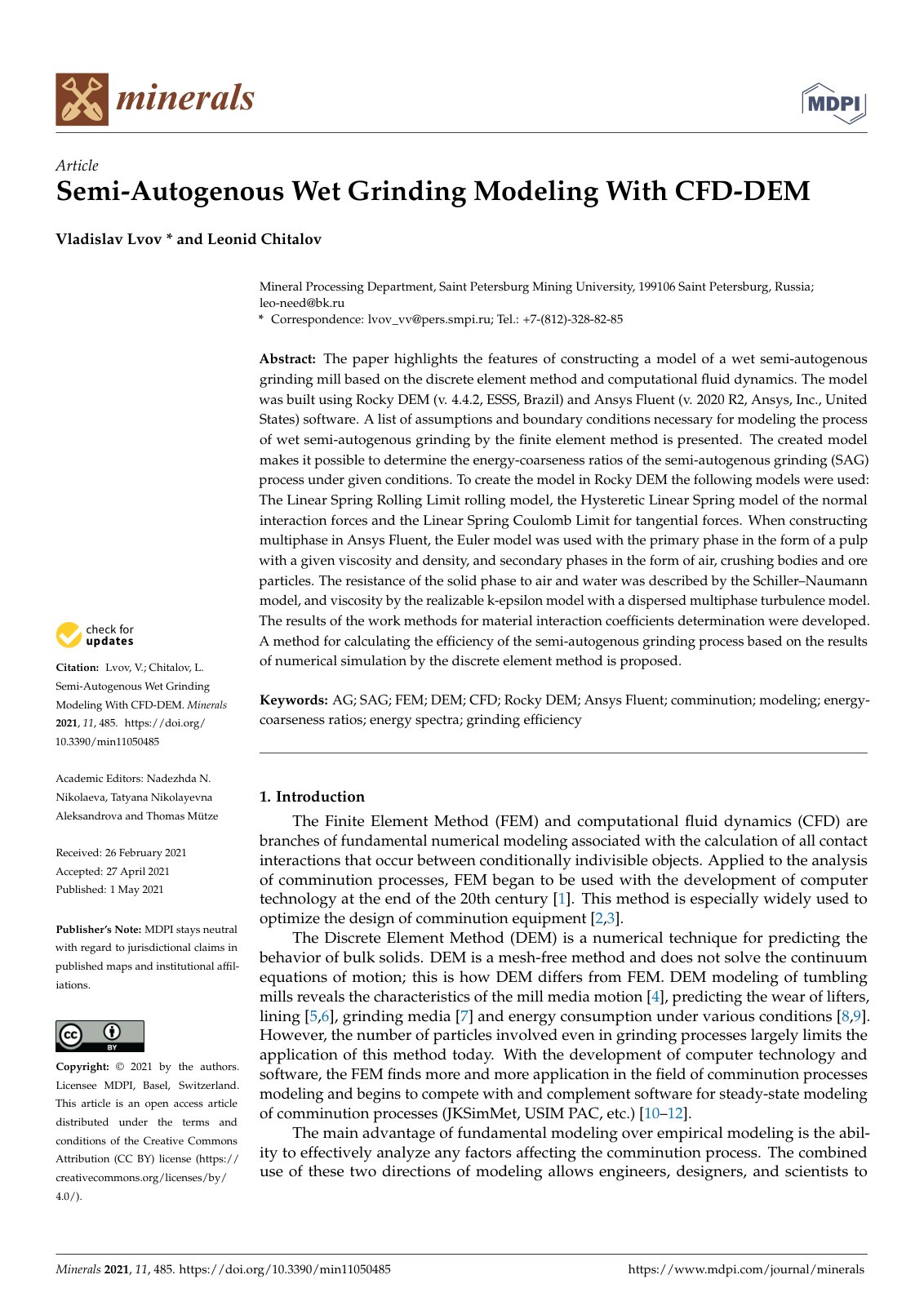

Semi-Autogenous Wet Grinding Modeling With CFD-DEM

The paper highlights the features of constructing a model of a wet semi-autogenous grinding mill based on the discrete element method and computational fluid dynamics. The model was built using Rocky DEM (v. 4.4.2, ESSS, Brazil) and Ansys Fluent (v. 2020 R2, Ansys, Inc., United States) software. A list of assumptions and boundary conditions necessary for modeling the process of wet semi-autogenous grinding by the finite element method is presented. The created model makes it possible to determine the energy-coarseness ratios of the semi-autogenous grinding (SAG) process under given conditions. To create the model in Rocky DEM the following models were used: The Linear Spring Rolling Limit rolling model, the Hysteretic Linear Spring model of the normal interaction forces and the Linear Spring Coulomb Limit for tangential forces. When constructing multiphase in Ansys Fluent, the Euler model was used with the primary phase in the form of a pulp with a given viscosity and density, and secondary phases in the form of air, crushing bodies and ore particles. The resistance of the solid phase to air and water was described by the Schiller–Naumann model, and viscosity by the realizable k-epsilon model with a dispersed multiphase turbulence model. The results of the work methods for material interaction coefficients determination were developed.
