Ewan Lordan, Yijie Zhang

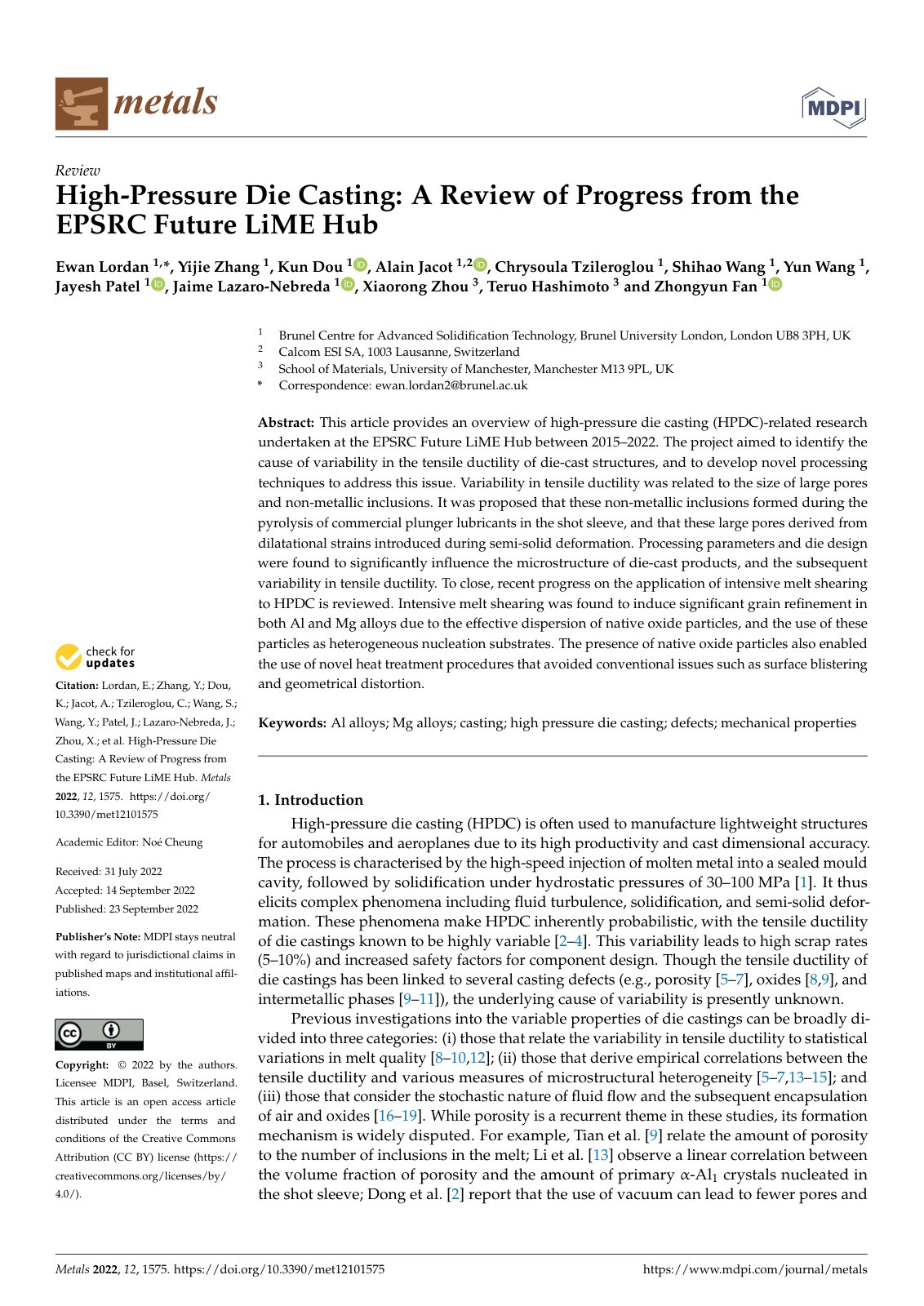

This article provides an overview of high-pressure die casting (HPDC)-related research undertaken at the EPSRC Future LiME Hub between 2015–2022. The project aimed to identify the cause of variability in the tensile ductility of die-cast structures and to develop novel processing techniques to address this issue. Variability in tensile ductility was related to the size of large pores and non-metallic inclusions. It was proposed that these non-metallic inclusions formed during the pyrolysis of commercial plunger lubricants in the shot sleeve, and that these large pores derived from dilatational strains introduced during semi-solid deformation. Processing parameters and die design were found to significantly influence the microstructure of die-cast products, and the subsequent variability in tensile ductility. To close, recent progress on the application of intensive melt shearing to HPDC is reviewed. Intensive melt shearing was found to induce significant grain refinement in both Al and Mg alloys due to the effective dispersion of native oxide particles, and the use of these particles as heterogeneous nucleation substrates.
@article{f4c68c4e-1dc0-4a45-8878-2c1b29b3bc68,
title={High-Pressure Die Casting: A Review of Progress from the EPSRC Future LiME Hub},
author={Ewan Lordan and Yijie Zhang},
year={2022},
language={English}
}TY - JOUR TI - High-Pressure Die Casting: A Review of Progress from the EPSRC Future LiME Hub AU - Ewan Lordan AU - Yijie Zhang PY - 2022 LA - English ER -
Naol Dessalegn Dejene, Hirpa G. Lemu
Thin-walled structures are a significant and growing portion of engineering construction, with a wide range of applications, including storage vessels,
Marek Br ˚ una, Marek Galcik
In this paper, a naturally pressurized gating system has been designed to reduce the turbulence of the melt during casting. The influence of gate dime
Abbas Razavykia, Cristiana Delprete
Cryogenic treatment is a supplemental structural and mechanical properties refinement process to conventional heat treatment processes, quenching, and
Oleksandr Kapustynskyi, Nikolaj Višniakov
This paper focuses on the microstructural characteristics of non-alloy structural steels with carbon contents below 0.3% (further—Low-Carbon Steel—LCS
Željko Stojanović, Bojan Gligorijević
Despite the surge in plasma nitriding research, few reviews thoroughly examine how surface decarburization—occurring both before and during the treatm
Manuel de J. Barrena‐Rodríguez, Francisco A. Acosta‐González
This review presents an analysis and discussion about heat transfer phenomena during quenching solid steel from high temperatures. It is shown a descr
