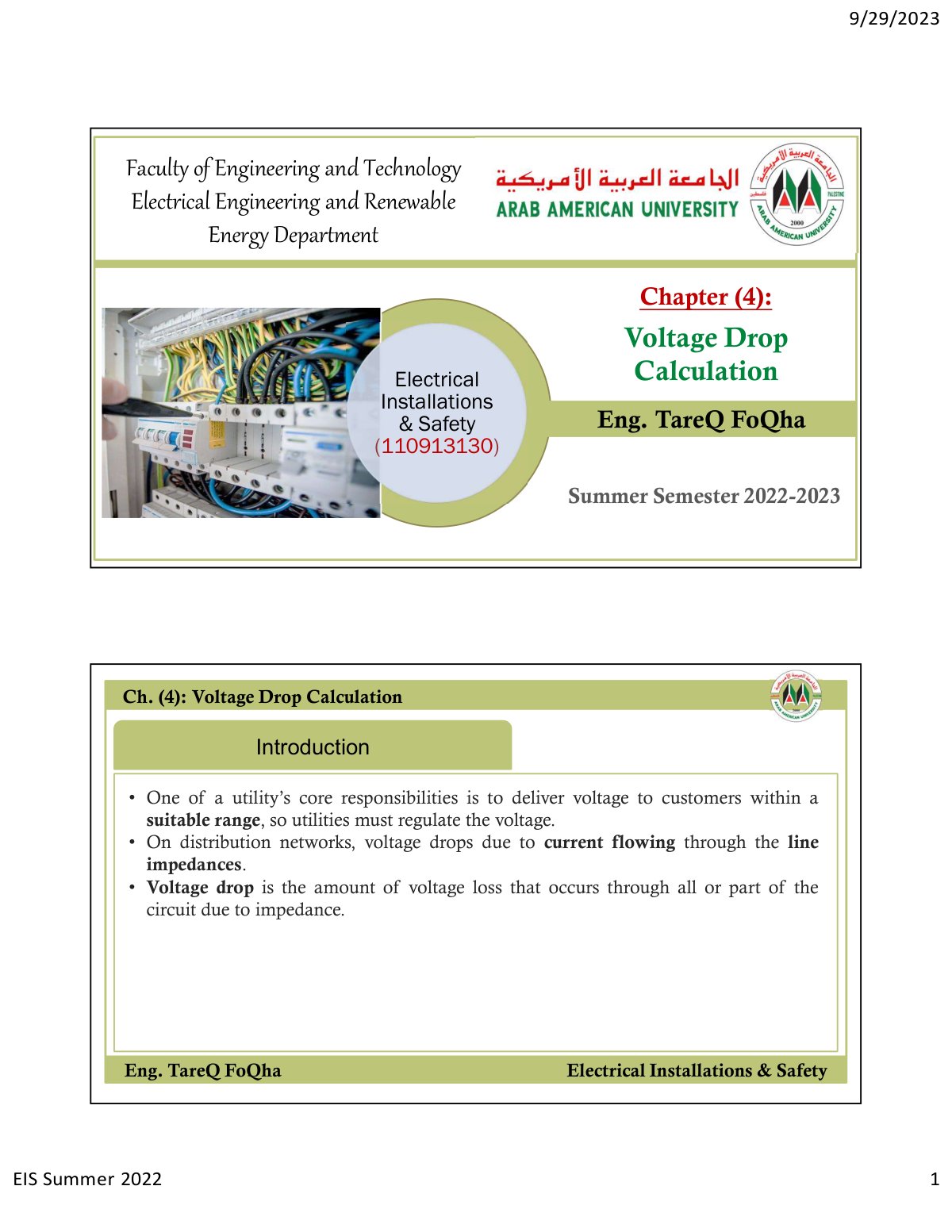

Electrical Installations and Safety Cour

This chapter discusses the critical aspect of voltage drop calculation in electrical installations, emphasizing its importance for utility providers and consumers. The objective is to outline the definitions and implications of various voltage types, including nominal, rated, service, and utilization voltages, while also highlighting the factors contributing to voltage drop in distribution networks. The methodology involves analyzing the impact of voltage drop on systems, specifically pointing out that a mere 1% drop can lead to a 3% decrease in incandescent lamp illumination and how motor-operated appliances are adversely affected by reduced voltage. The chapter illustrates practical examples using manufacturer specifications to showcase the implications of undersized conductors and the correct calculations required to maintain optimal voltage levels. Results indicate that proper sizing of conductors and an understanding of voltage drop implications can significantly enhance the efficiency and performance of electrical systems. This provides a solid foundation for engineers and professionals to ensure compliance and safety in electrical design and installations.
