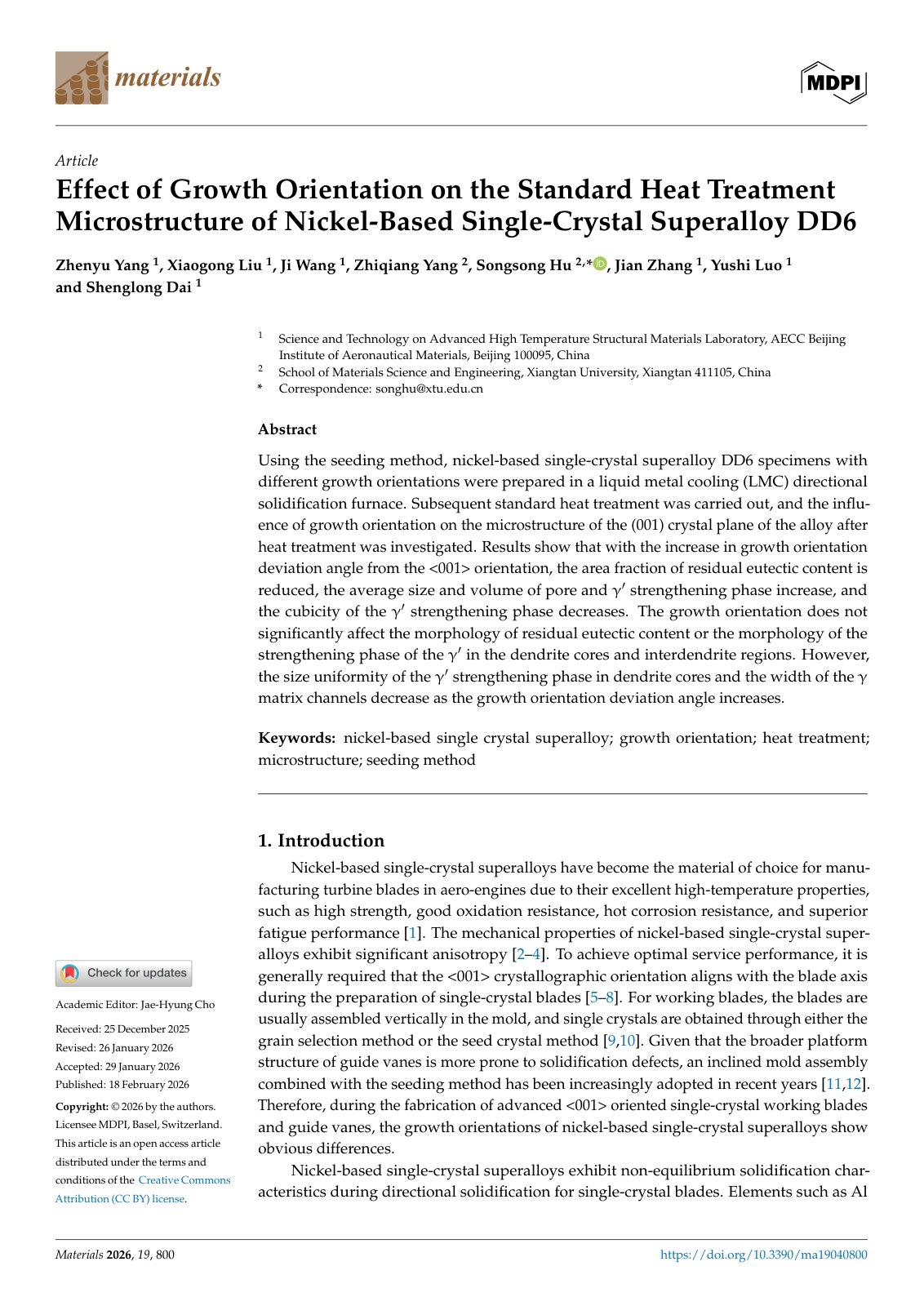

2026 DD6 Growth Orientation Heat Treatment

Zhenyu Yang, Xiaogong Liu

2026ennickel superalloysingle crystalgrowth orientationheat treatmentmicrostructureturbine blades

Abstract

Language:

Using the seeding method, nickel-based single-crystal superalloy DD6 specimens with different growth orientations were prepared in a liquid metal cooling (LMC) directional solidification furnace. Subsequent standard heat treatment was carried out, and the influence of growth orientation on the microstructure of the (001) crystal plane of the alloy after heat treatment was investigated. Results show that with the increase in growth orientation deviation angle from the <001> orientation, the area fraction of residual eutectic content is reduced, the average size and volume of pore and γ′ strengthening phase increase, and the cubicity of the γ′ strengthening phase decreases. The growth orientation does not significantly affect the morphology of residual eutectic content or the morphology of the strengthening phase of the γ′ in the dendrite cores and interdendrite regions. However, the size uniformity of the γ′ strengthening phase in dendrite cores and the width of the γ matrix channels decrease as the growth orientation deviation angle increases.

Download

Cite This Work

@article{f9bf2781-6f78-45f9-bfb7-0942f259b473,
  title={2026 DD6 Growth Orientation Heat Treatment},
  author={Zhenyu Yang and Xiaogong Liu},
  year={2026},
  language={en}
}
TY  - JOUR
TI  - 2026 DD6 Growth Orientation Heat Treatment
AU  - Zhenyu Yang
AU  - Xiaogong Liu
PY  - 2026
LA  - en
ER  -
