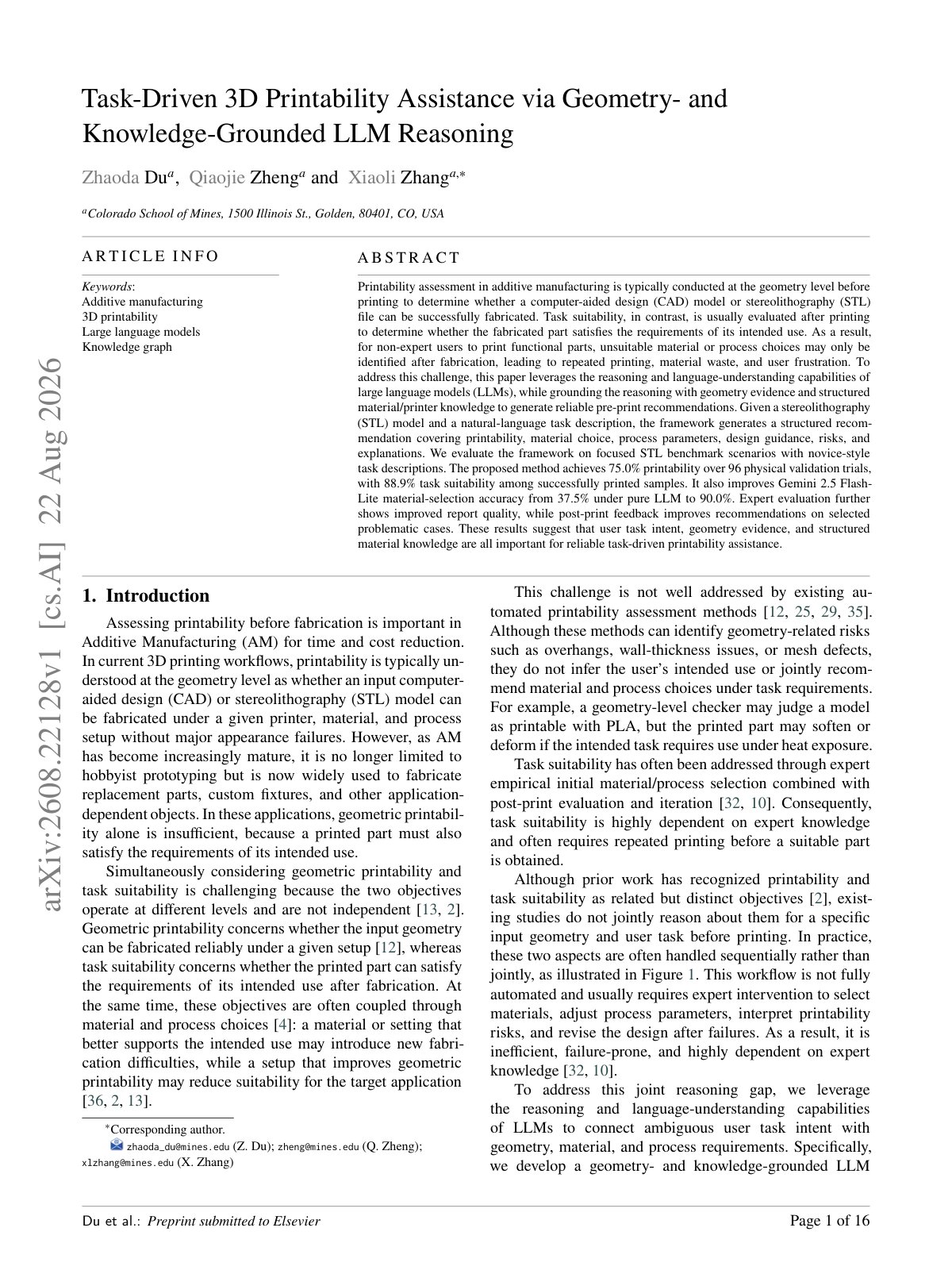

Task-Driven 3D Printability Assistance via Geometry- and Knowledge-Grounded LLM Reasoning

Printability assessment in additive manufacturing is typically conducted at the geometry level before printing to determine whether a computer-aided design (CAD) model or stereolithography (STL) file can be successfully fabricated. Task suitability, in contrast, is usually evaluated after printing to determine whether the fabricated part satisfies the requirements of its intended use. To address this challenge, this paper leverages the reasoning and language-understanding capabilities of large language models (LLMs), while grounding the reasoning with geometry evidence and structured material/printer knowledge to generate reliable pre-print recommendations. Given a stereolithography (STL) model and a natural-language task description, the framework generates a structured recommendation covering printability, material choice, process parameters, design guidance, risks, and explanations. We evaluate the framework on focused STL benchmark scenarios with novice-style task descriptions. The proposed method achieves 75.0% printability over 96 physical validation trials, with 88.9% task suitability among successfully printed samples. It also improves material-selection accuracy significantly from 37.5% to 90.0%. Expert evaluation shows improved report quality, while post-print feedback enhances recommendations on selected problematic cases. These results suggest that user task intent, geometry evidence, and structured material knowledge are all important for reliable task-driven printability assistance.
